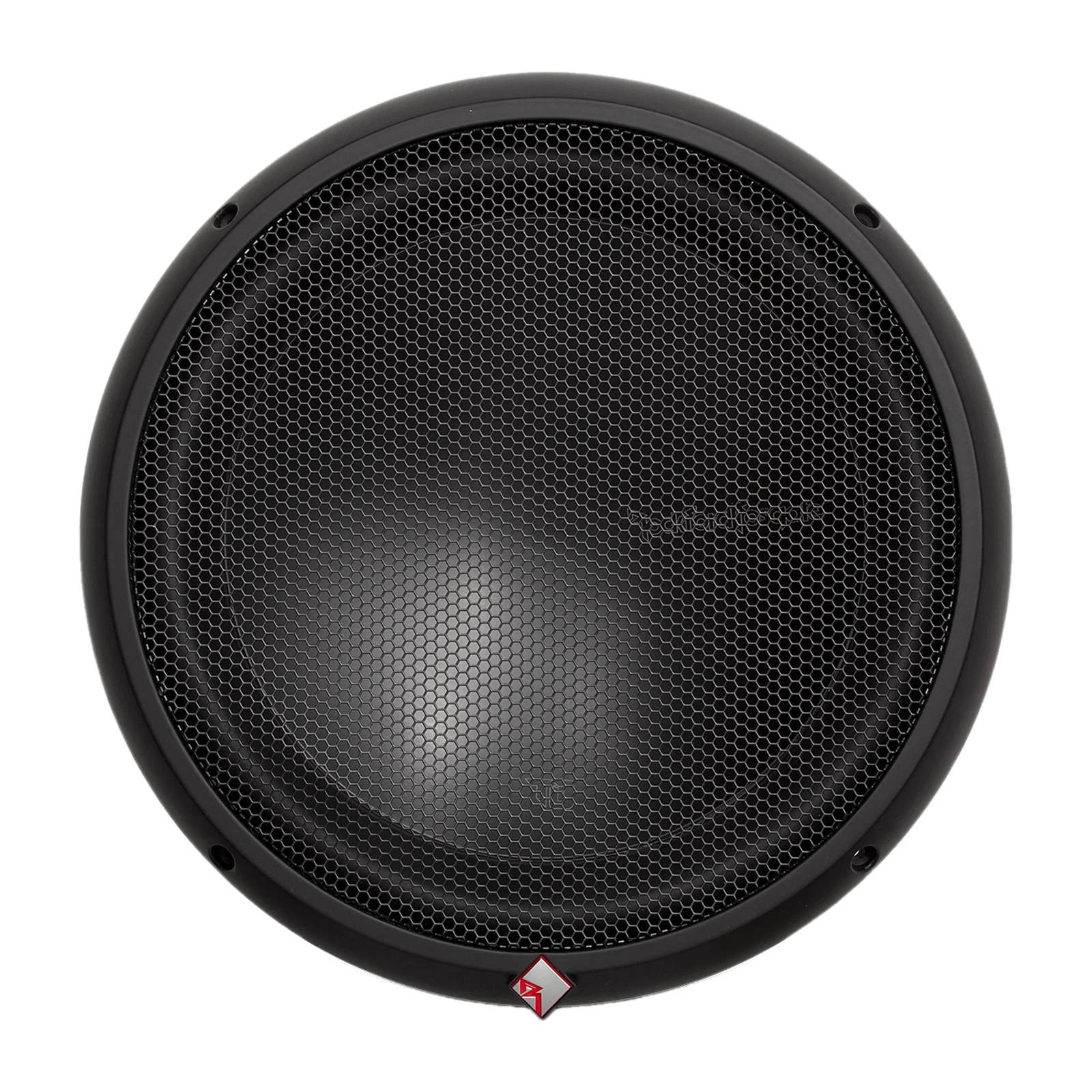

Rockford Fosgate Power T0D412 12in Dual 4 Ohm 700 Watts Subwoofer

Rockford Fosgate T0D412 12-inch Power Series subwoofer with dual 4-ohm voice coils, 700 watts RMS power handling, VAST technology, a Kevlar fiber-reinforced paper cone, and an included grille.

$299.99

Out of stock

Description

The Sub At A Glance:

  • Power handling: Handles 700 watts RMS and up to 1400 watts maximum power.
  • Dual voice coils: Dual 4-ohm voice coils provide flexible wiring options for compatible amplifiers.
  • Expanded cone area: VAST technology increases usable cone surface area by up to 25%, helping the T0D412 perform like a larger woofer.
  • Reinforced cone: A Kevlar fiber-reinforced paper cone delivers the toughness needed for hard-hitting bass.
  • Durable suspension: Periodic-stitched, fatigue-resistant tinsel leads and optimized spider venting support demanding operation.

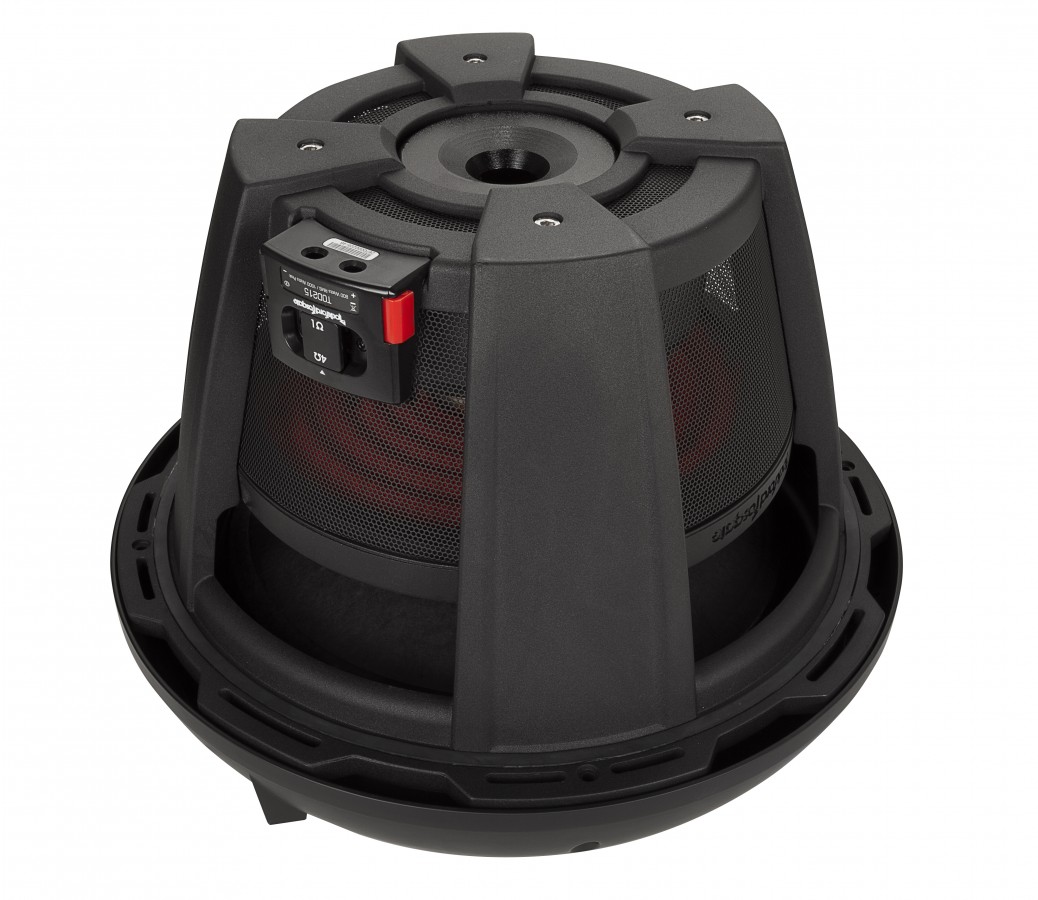

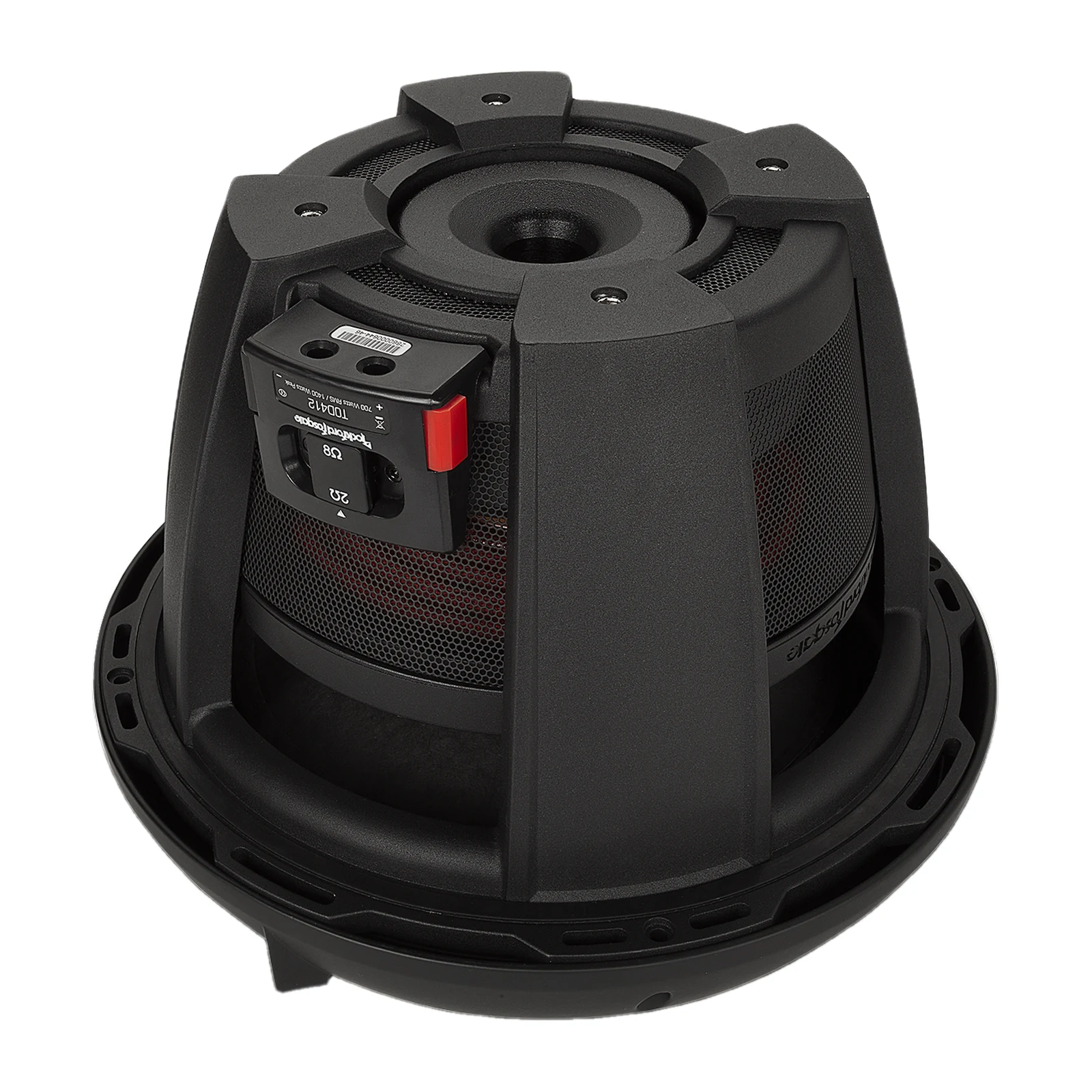

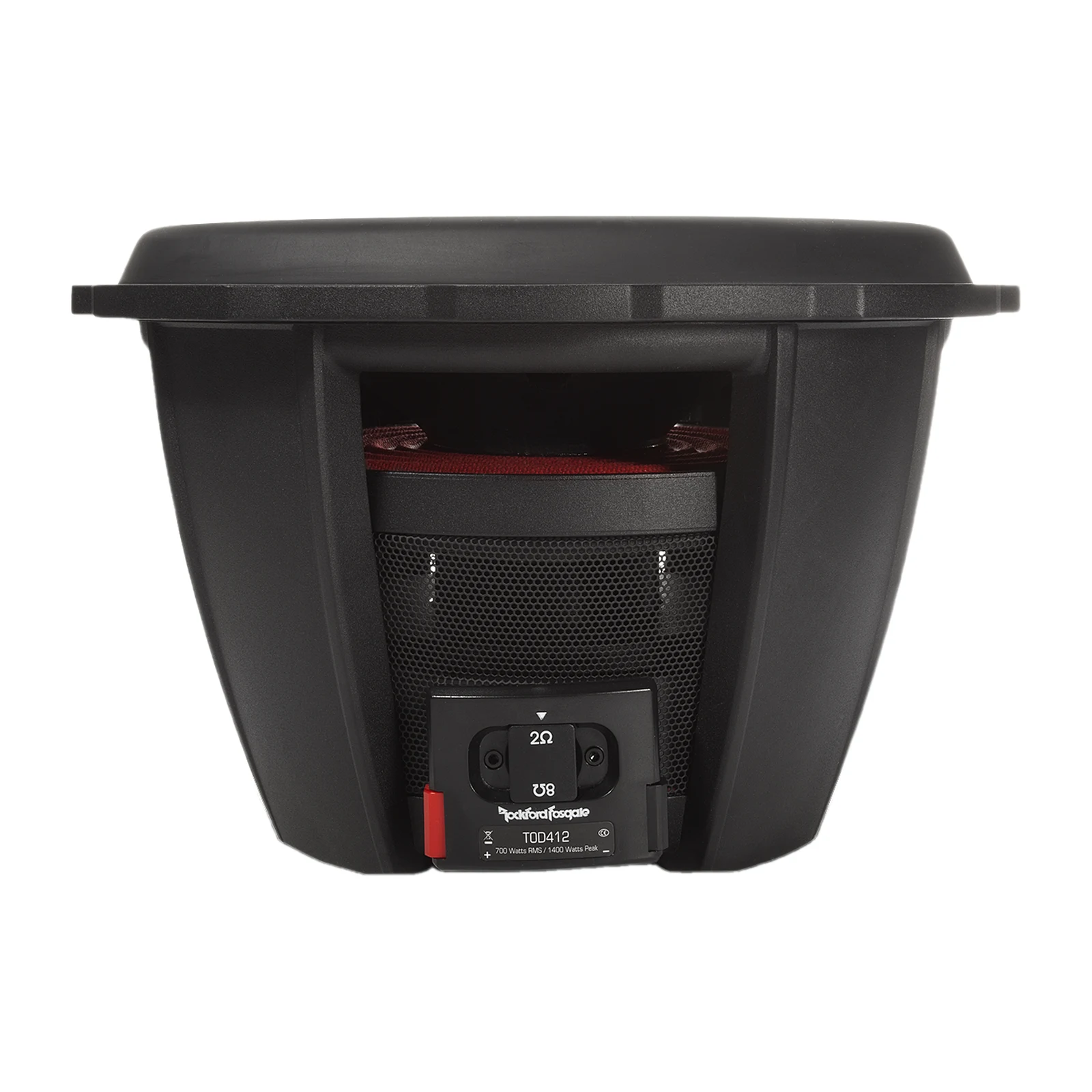

  • Rigid construction: The die-cast aluminum basket provides a solid foundation, while the FlexFit basket adds installation flexibility.
  • Heat management: A high-temperature voice coil, spun-laced Nomex reinforcement collar, anodized aluminum former, and heat-sinking dust cap help manage heat.

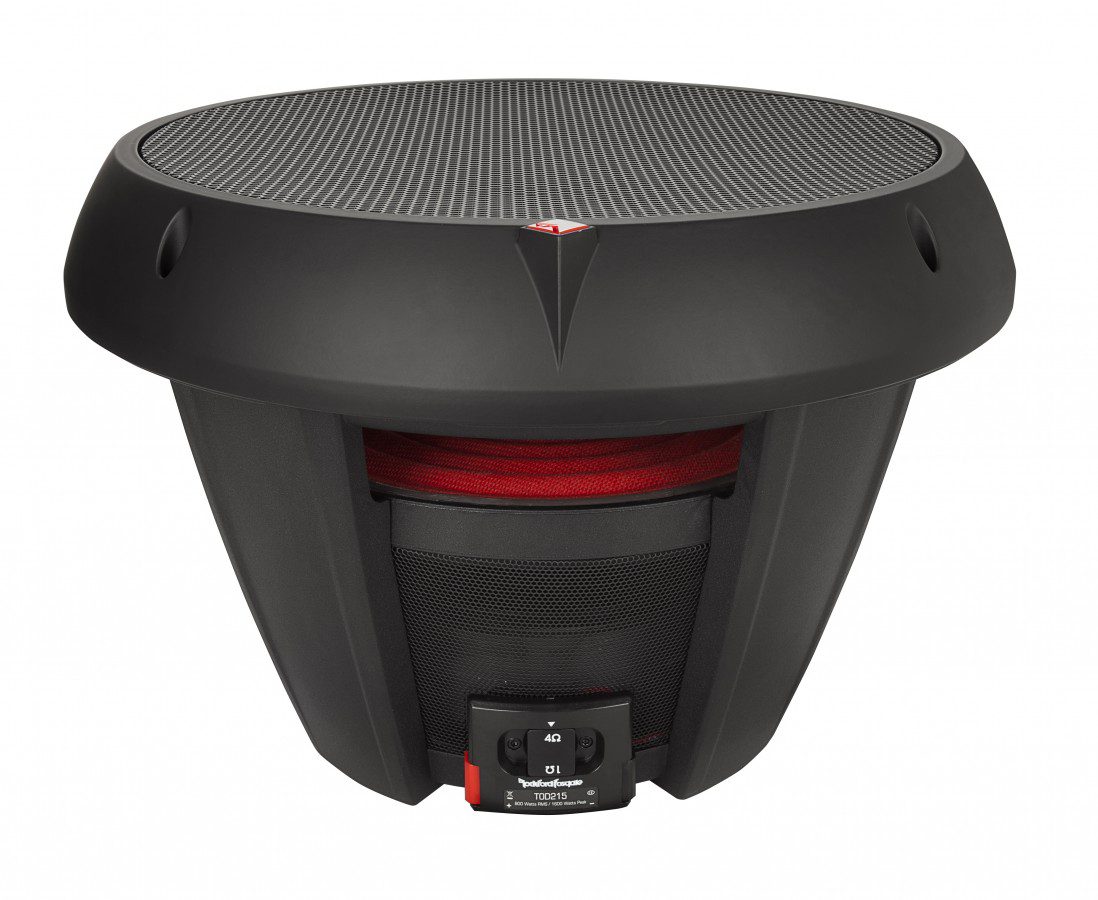

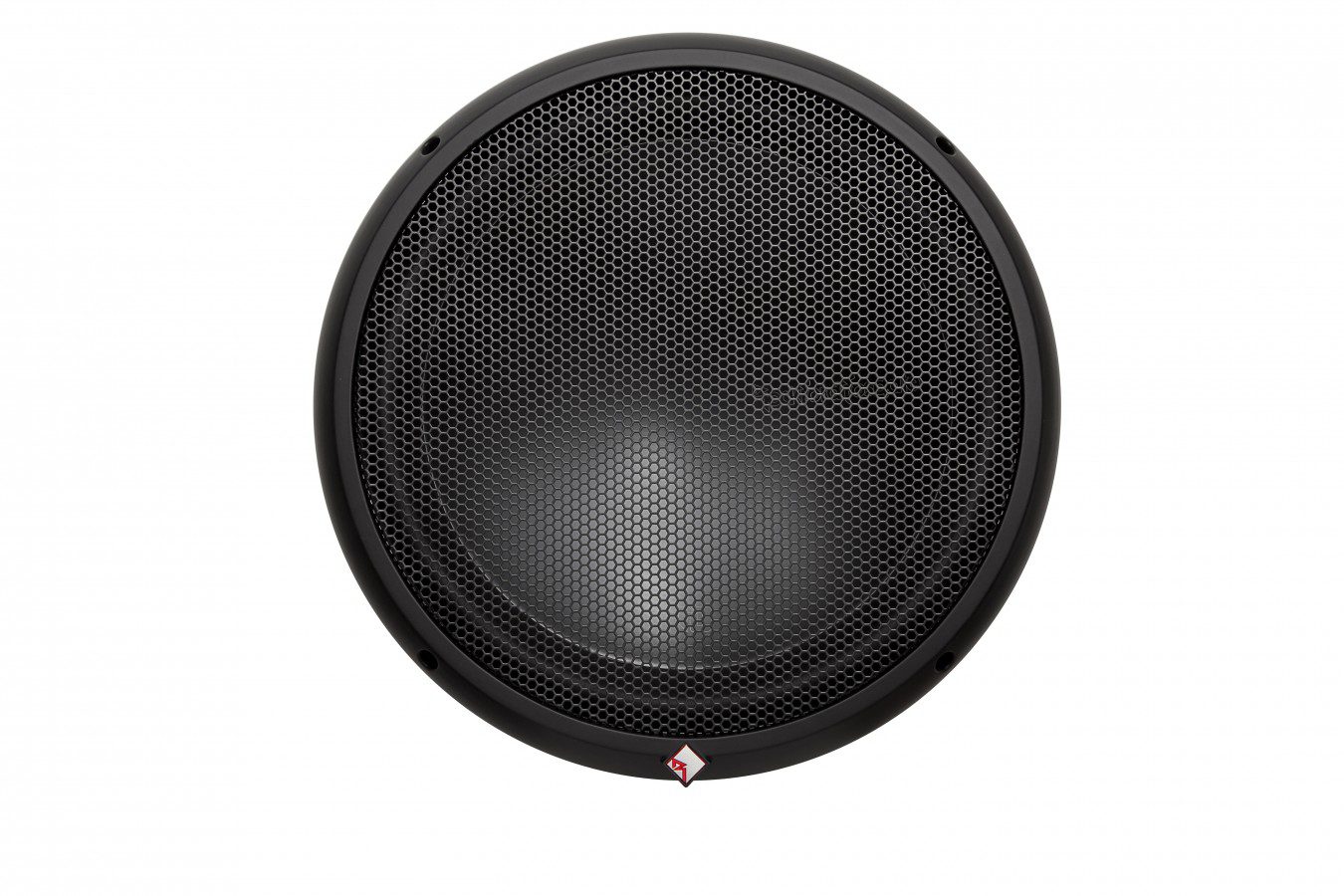

  • Finished protection: An included grille with an integral trim ring protects the subwoofer and completes the installation.

The Rockford Fosgate T0D412 brings deep, forceful bass that you can feel through the cabin. Its 12-inch cone moves the low end with convincing weight, giving kick drums a solid hit and bass lines a dense, rolling rumble. Built with the rugged materials and high-power capability expected from the Power Series, it is ready to add serious depth and impact to a properly matched car audio system.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 700 Watts
Sub Max Power 1400 Watts
Sub Impedance Dual 4 Ohm
Voice Coils Dual
Voice Coil Diameter 3in (75.5 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 14.8mm
Sound Pressure Level (SPL) @ 1W/1m 84.1dB
Resonant Frequency (Fs) 26Hz
DC Resistance (Re) 6.20Ohm
Voice Coil Inductance (Le) 8.4mH
Total Q (Qts) 0.53
Electrical Q (Qes) 0.58
Mechanical Q (Qms) 6.00
Equivalent Compliance Volume (Vas) 55.1Liters
Effective Cone Area (Sd) 548cm²
Fitment & Dimensions
Woofer Displacement 0.106 cu. ft. (3.0 Liters)
Mounting Depth 6.875 in. (174.6 mm)
Cutout Diameter 11.25 in. (285 mm)
Magnet Weight (oz) 106 oz. (3.00 Kg.)
Speaker Connector Compression Terminal
Shipping Weight 31.16 Lbs. (14.13 kg)

Additional information

Weight 32 lbs
Sub Size

Sub Impedance

Sub Max Power

1400 Watts Max

Sub Power RMS

Voice Coils

Dual

Series

Power

Sub Type

Standard
