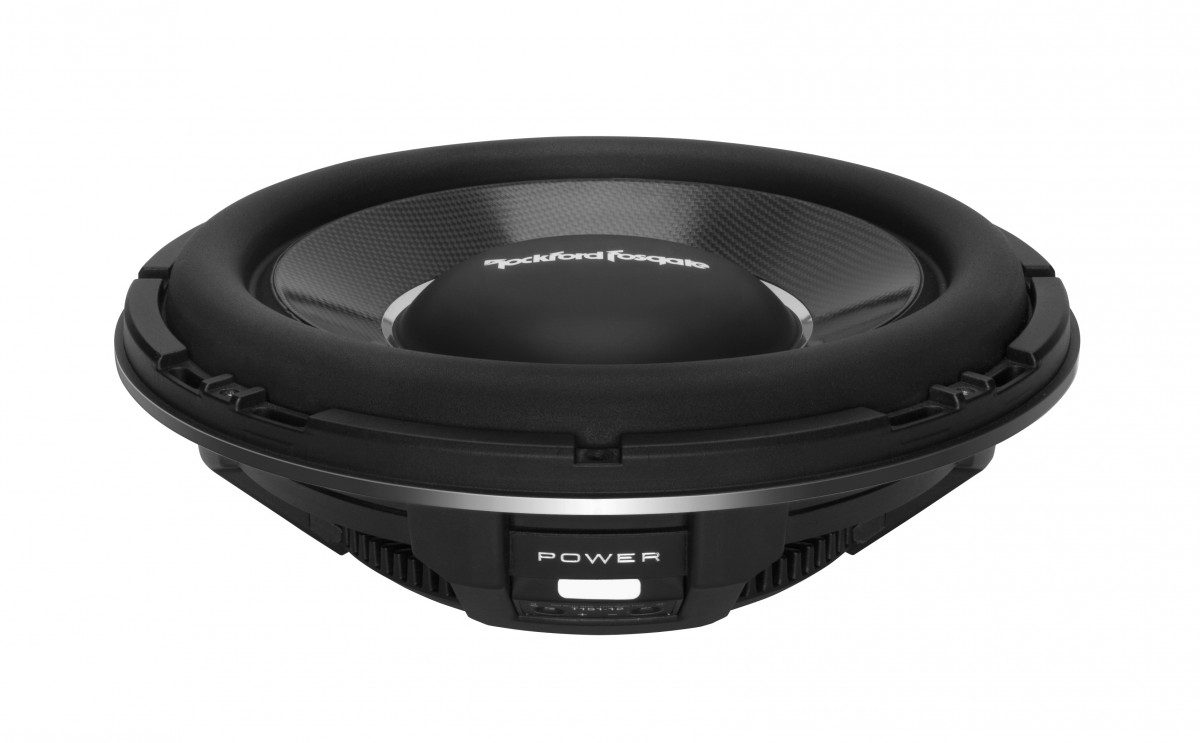

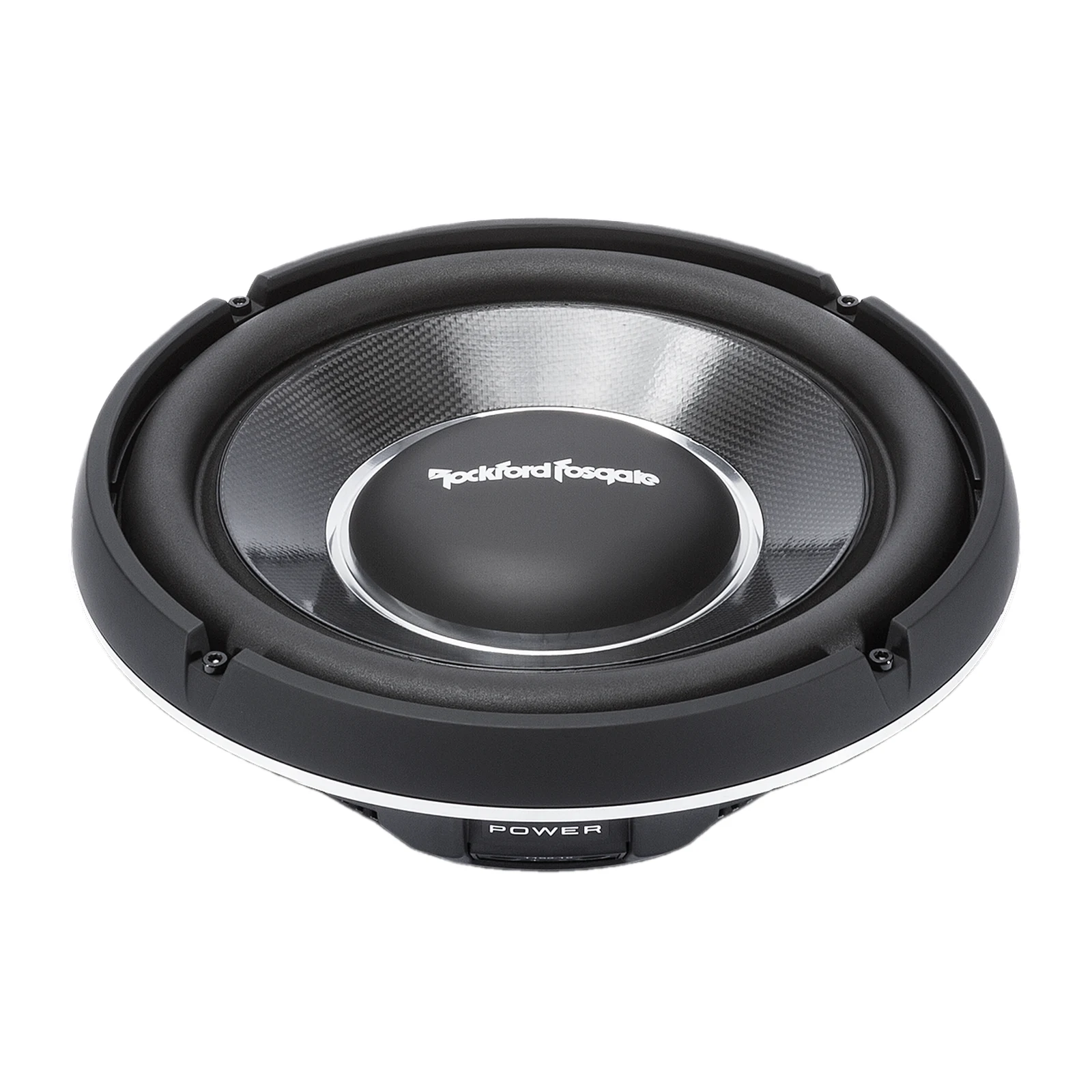

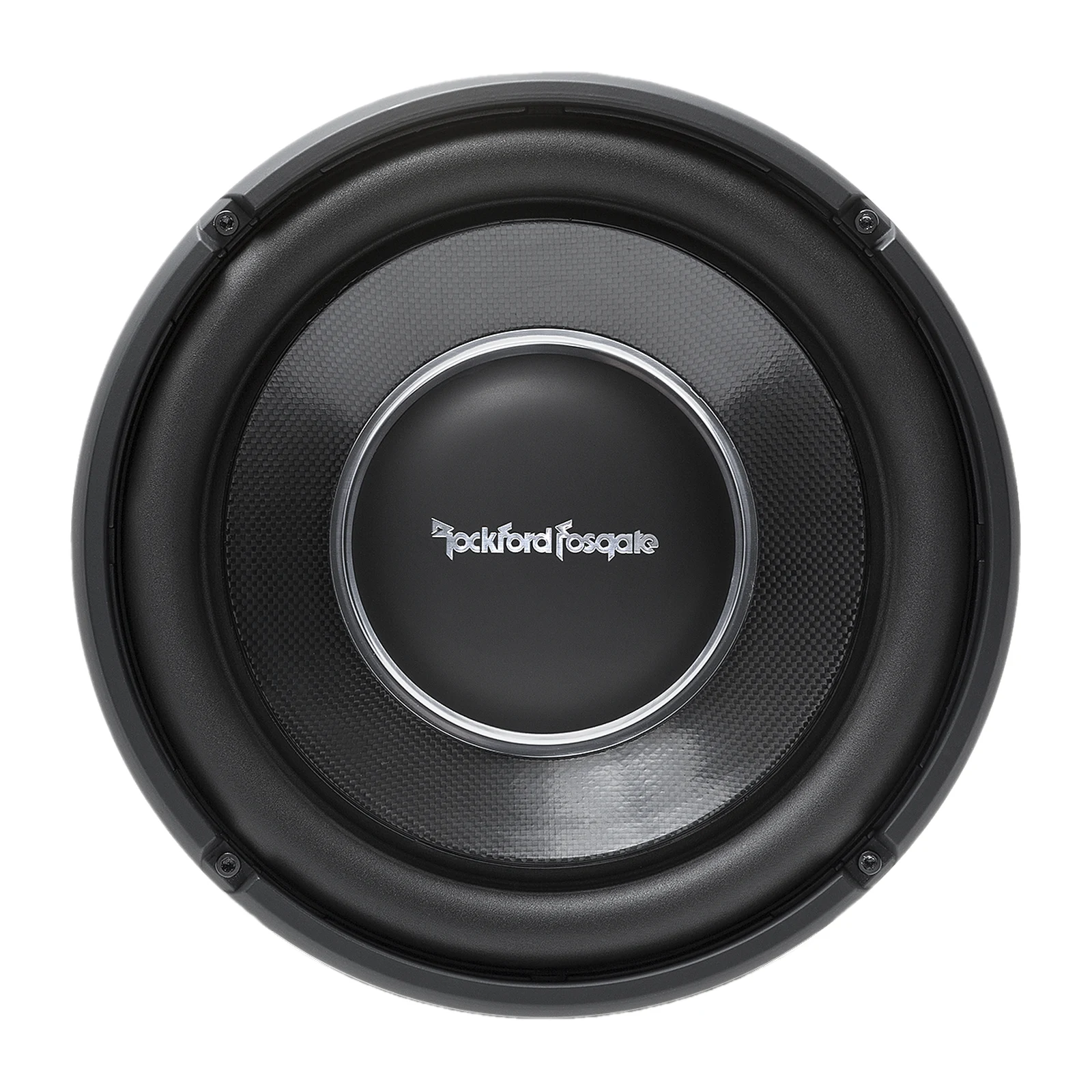

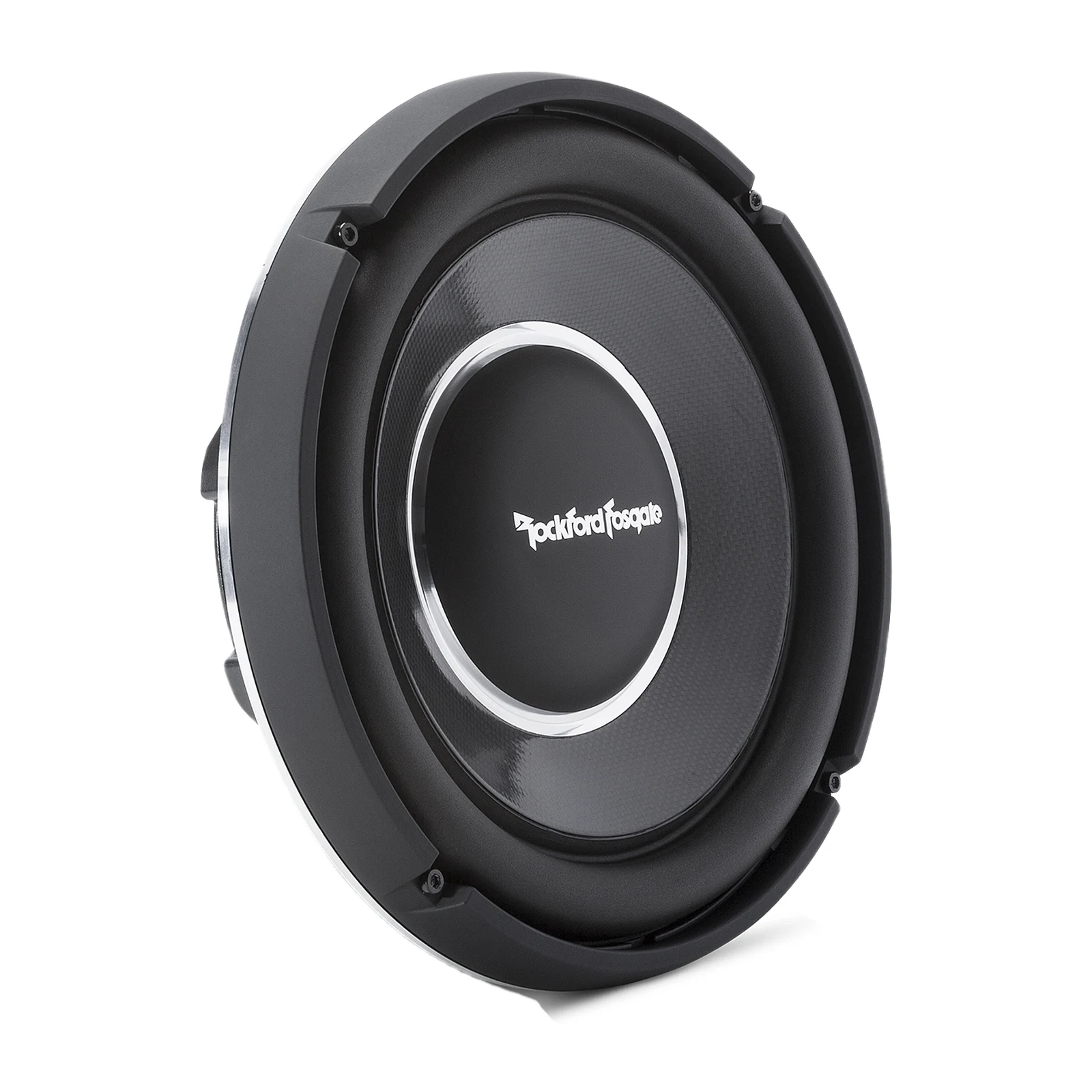

Rockford Fosgate Power T1S2-12 12in 2 Ohm 600 Watts Subwoofer

Rockford Fosgate T1S2-12 Power Series 12-inch shallow subwoofer with a single 2-ohm voice coil, 600 watts RMS power handling, a carbon fiber composite cone, and a slim design optimized for sealed enclosures.

$599.99

1 in stock

Description

The Sub At A Glance:

  • Shallow 12-inch design: Fits installations where a traditional-size subwoofer requires too much mounting depth.
  • 600 watts RMS power handling: Handles up to 1,200 watts maximum for forceful low-frequency output.
  • Single 2-ohm voice coil: Uses a dual-wound 2.98-inch CCA voice coil with interior and exterior windings.

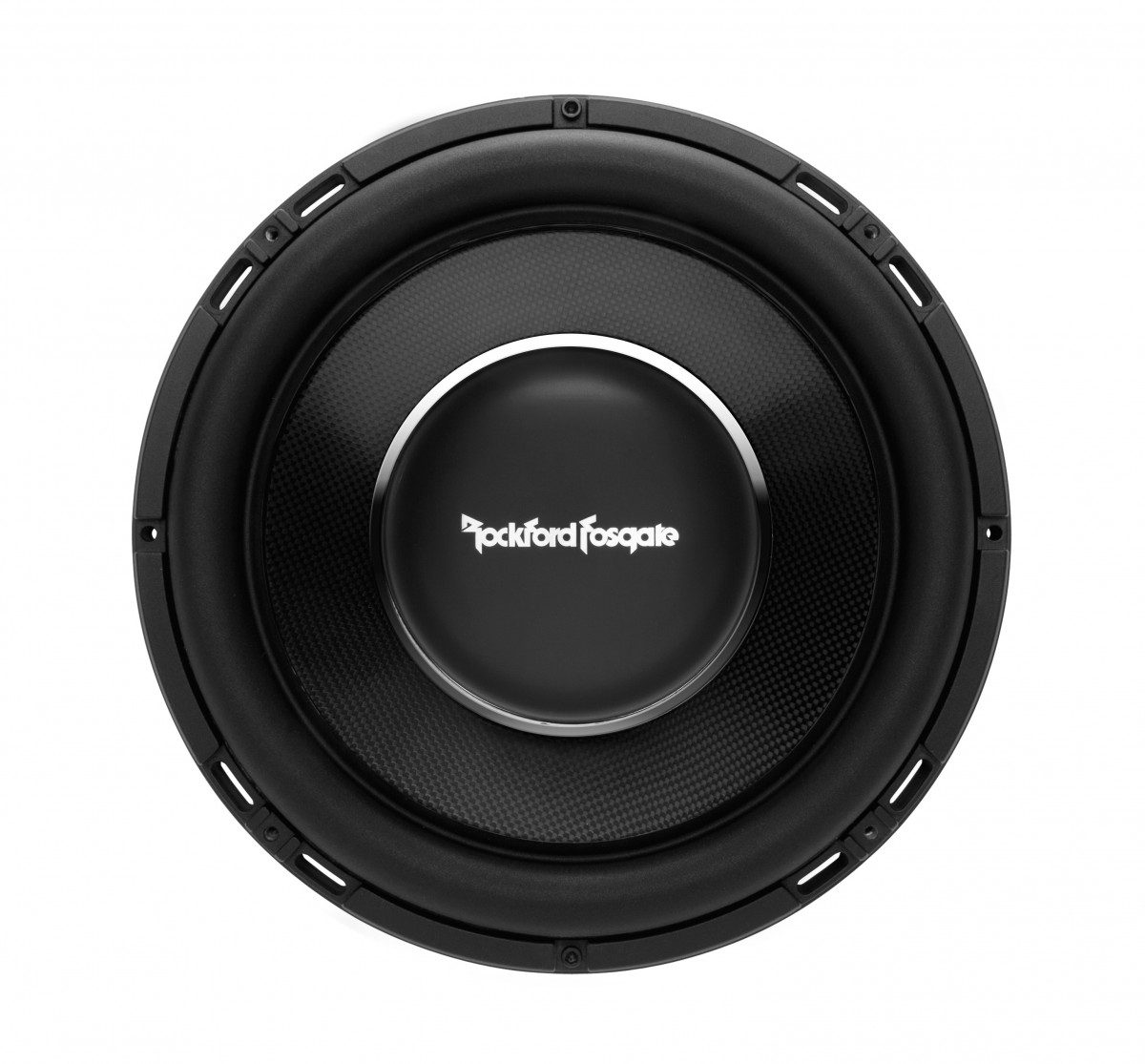

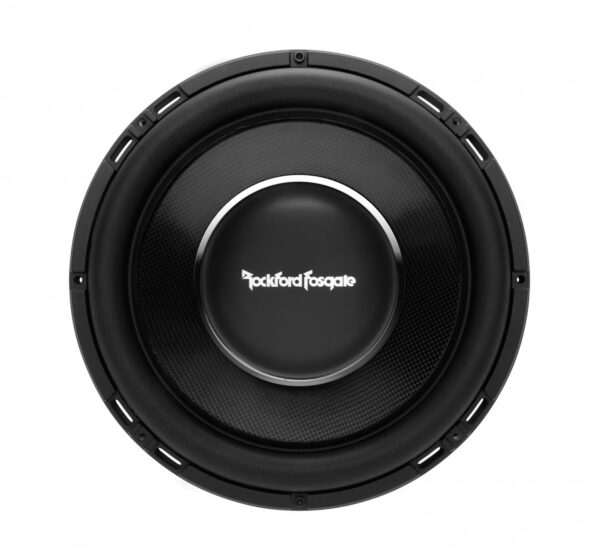

  • Rigid composite cone: A linear carbon fiber, PMI, and glass fiber cone pairs with an aluminum dust cap.
  • Heavy-duty suspension: An injection-molded foam surround with VAST and dual progressive Nomex spiders support long excursion.

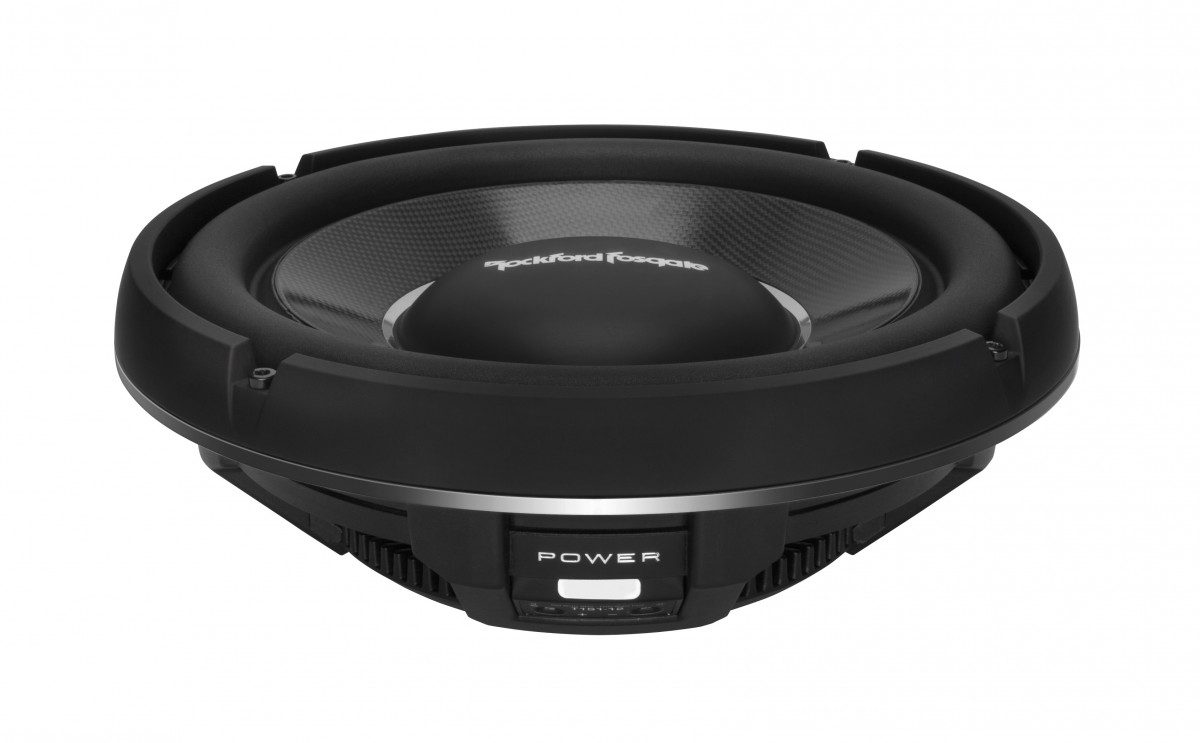

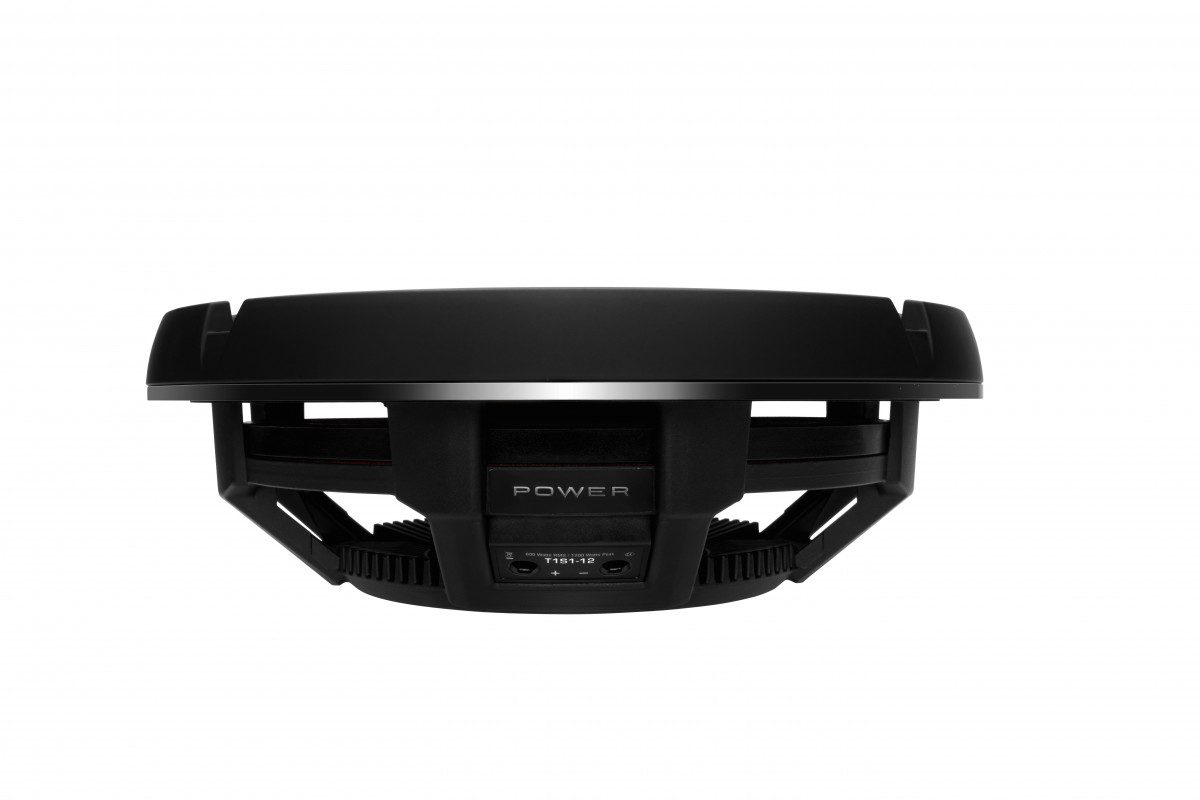

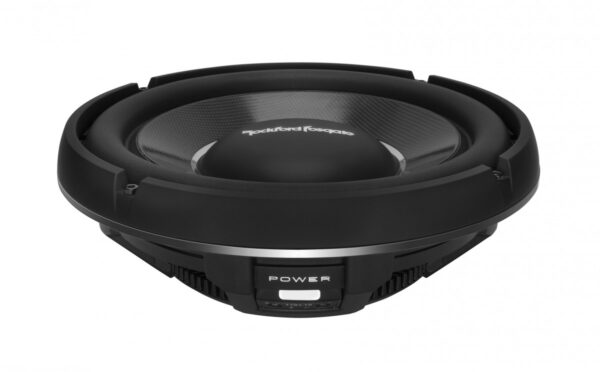

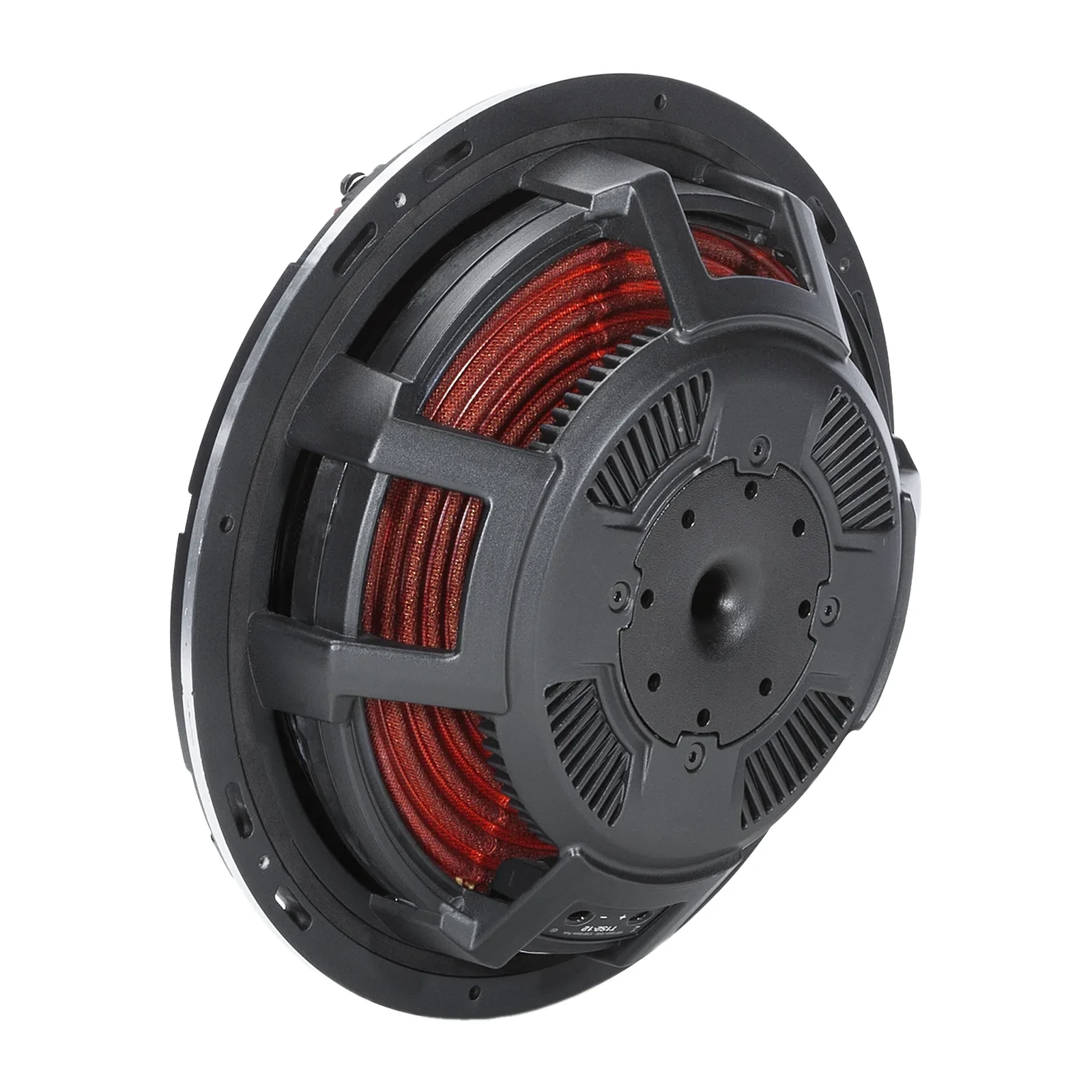

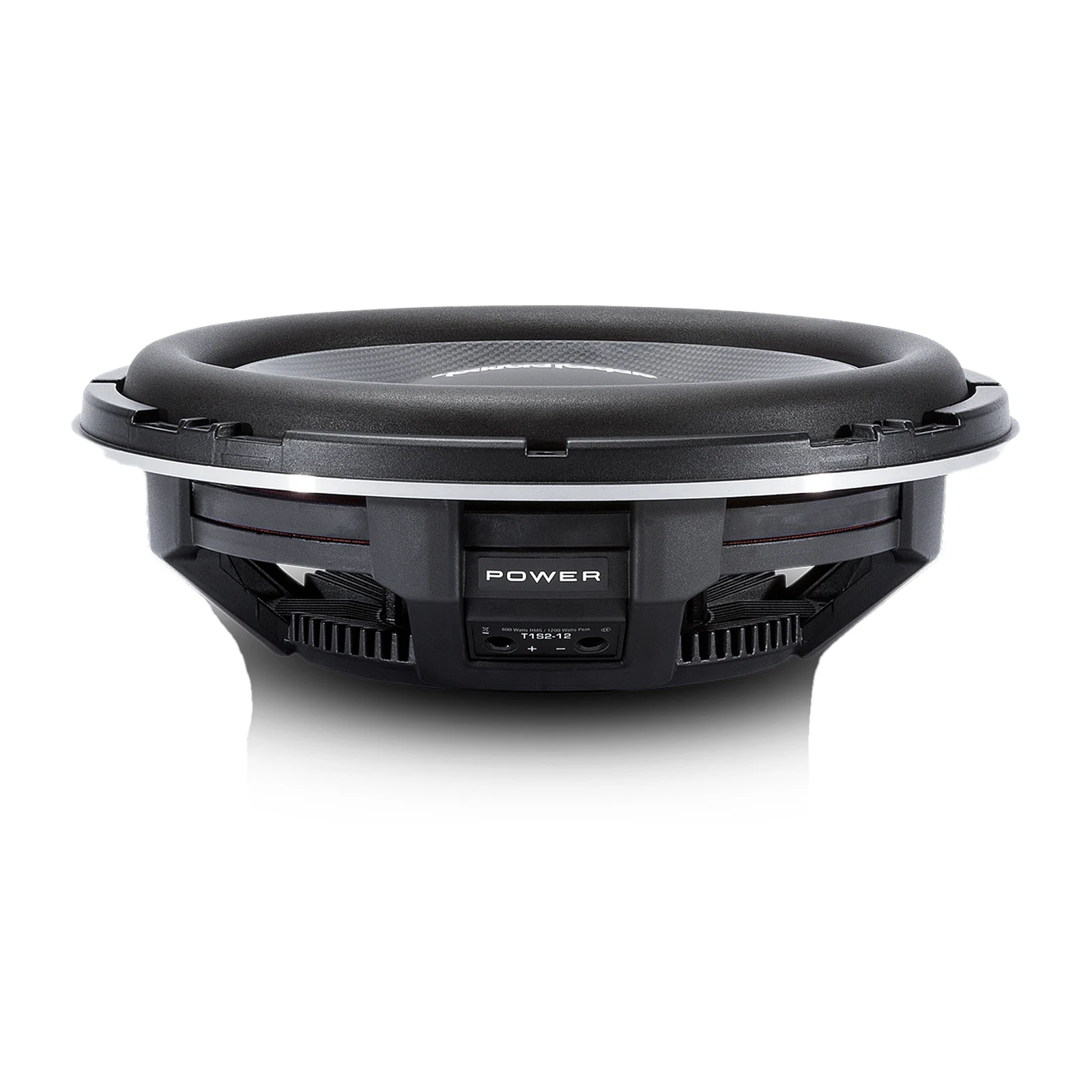

  • Durable aluminum frame: The die-cast frame incorporates heat-sink fins and a detachable die-cast aluminum trim ring.
  • Sealed-enclosure ready: Optimized for sealed enclosures when installation space is limited.

The T1S2-12 brings the depth and physical weight of Power Series bass to spaces that cannot accommodate a traditional-size woofer. Its long-excursion slotted voice coil assembly lets low notes reach deep, filling the vehicle with a sustained rumble while harder bass hits arrive with solid, unmistakable impact.

Subwoofer Specifications
Sub Size 12in
Sub Type Shallow
Sub Power RMS 600 Watts
Sub Max Power 1200 Watts
Sub Impedance 2 Ohm
Voice Coils Single
Voice Coil Diameter 2.98in (75 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 15mm
Sound Pressure Level (SPL) @ 1W/1m 85dB
Sound Pressure Level (SPL) @ 2.8V/1m 88dB
Resonant Frequency (Fs) 37Hz
DC Resistance (Re) 1.7Ohm
Voice Coil Inductance (Le) 0.45mH
Total Q (Qts) 1.06
Electrical Q (Qes) 1.17
Mechanical Q (Qms) 11.22
Equivalent Compliance Volume (Vas) 32.4Liters
Effective Cone Area (Sd) 560cm²
Fitment & Dimensions
Woofer Displacement 0.042 cu. ft. (1.2 Liters)
Mounting Depth 3.01 in. (76.5 mm)
Cutout Diameter 11.22 in. (285 mm)
Magnet Weight (oz) 14.42 oz. (0.41 Kg)
Sealed Box Volume (Vb) 1.1 cu. ft. (31.1 Liters)
Vented Box Volume (Vb) 2.0 cu. ft. (56.6 Liters)
Speaker Connector 10 AWG slot loaded
Shipping Weight 16.15 Lbs. (7.3 Kg.)

Additional information

Weight 17 lbs
Sub Size

Sub Impedance

Sub Max Power

1200 Watts Max

Sub Power RMS

Sub Type

Shallow

Voice Coils

Single

Series

Power
