ROCKFORD FOSGATE TMS6SG

$399.99

ROCKFORD FOSGATE TMS6SG COAXIAL HARLEY-DAVIDSON SERIES 6.5 IN 75 WATT RMS 4 OHM

  • Description
  • Additional information

Description

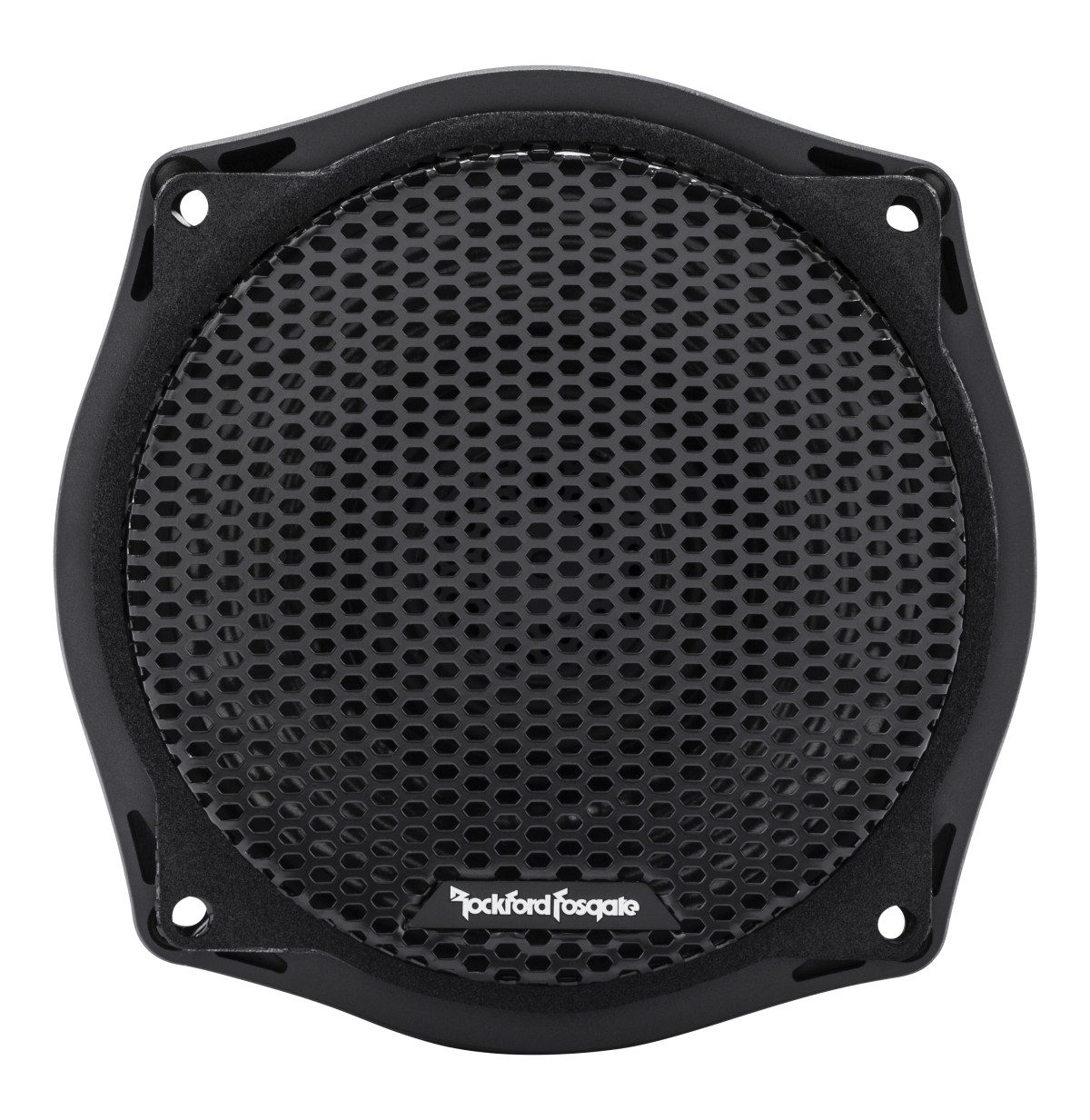

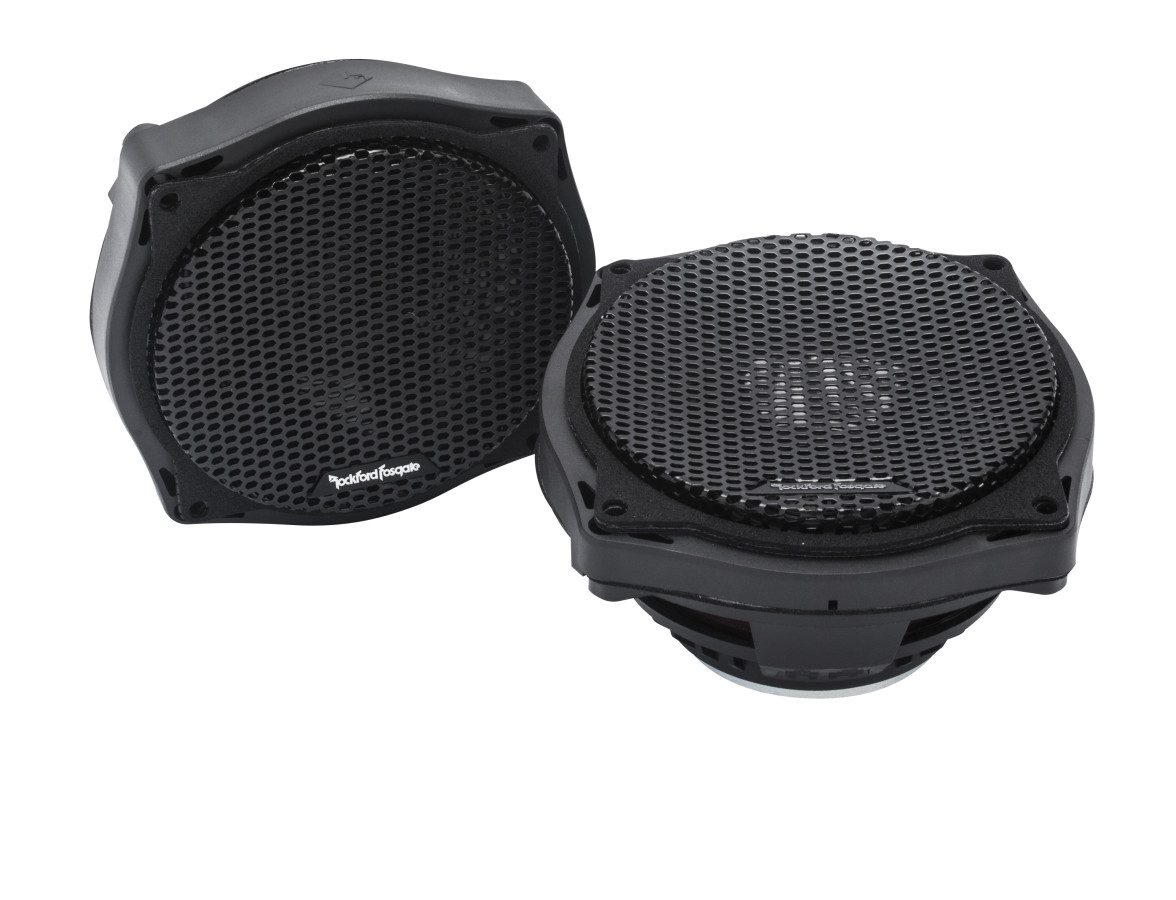

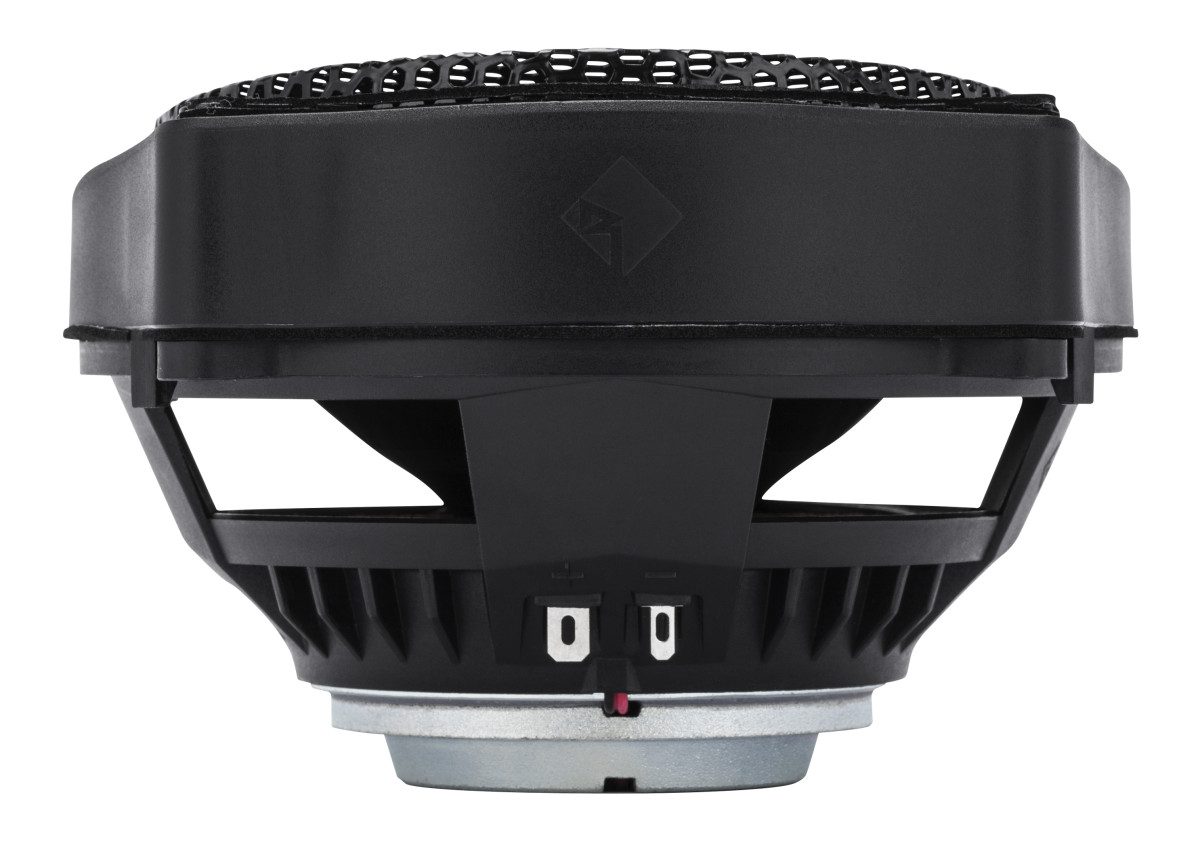

The TMS6SG full range coaxial speaker is designed for direct fitment applications on select model (see compatibility chart) Harley-Davidson® Electra Glide® and Street Glide® motorcycles in the upper fairing locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

Harley-Davidson® and Street Glide® are registered trademarks of Harley-Davidson Motor Company

Element Ready design that is weather and water resistant
Neodymium Tweeter with Integrated Phase Plug and ASA Grill
Ultra-Efficient 25mm Proprietary Film Dome Tweeter
Carbon Fiber Reinforced Polypropylene Cone
Santoprene VAST Surround
Co‐Molded Cone and Surround
Santoprene Front Isolation Spider
Poly‐Cotton Spider
High Power 35mm Voice Coil
Ultra‐Efficient Neodymium Ring Magnet Motor
Ultra‐High Temperature Glass Reinforced Polymer Frame
Integrated Spade Terminals
Integrated 6dB Crossover with High Power Polyester Capacitor
Low Profile Coaxial Tweeter Design
Discreet (Hidden) Tweeter Wire
Designed for 1998‐2013 Harley-Davidson® Electra Glide® / Street Glide® Fairing Locations
NOTE: Installation on CVO™ and Screaming Eagle™ models are not plug-n-play and will require modification
2-Year Warranty

Nominal Impedance (Ohms)4-Ohm
Midrange Size
(Nominal Diameter)6.5″
CEA-2031 CompliantCEA-2031 Guidelines
Frequency Response (Hz)56 Hz – 20 kHz
Power Handling (MAX)150 Watts MAX
Power Handling (RMS)75 Watts RMS
CrossoverBuilt-in tweeter crossover
Sensitivity
(dB @ 1W/1M)91 dB
Voice Coil Diameter (in/mm)1.40″
(35.6 mm)
Sensitivity
(dB @ 2.83V/1M)94 dB
Grille/Trim Ring IncludedYes
Speaker Type2-Way Coax
Mounting HardwareYes
Included In The Box(2) Speakers
(2) Speaker Grilles
(1) Hardware Pack

YEAR MAKE CHASSIS MODEL FAIRING
2006–2013 Harley-Davidson® FLHX Street Glide® Bat Wing
1998–2013 Harley-Davidson® FLHTI Electra Glide® Standard Bat Wing

Additional information

Weight 4 lbs
