Hertz Mille MP 300 D4.3 12in 4 Ohm 600 Watts RMS Subwoofer

The Hertz MP 300 D4.3 12-inch car subwoofer delivers 600 Watts RMS through dual 4 Ohm voice coils, combining compact installation dimensions with a rigid V-cone and Boundary Free Surround technology.

$649.99

4 in stock

SKU MP 300 D4.3 Categories , , , Tags , , , Brand:

Description

The Sub At A Glance:

  • Power handling: Handles 600 Watts RMS and 1200 Watts Max for forceful low-frequency output.
  • Dual voice coils: The 4 Ohm + 4 Ohm DVC configuration provides versatile amplifier-matching options.

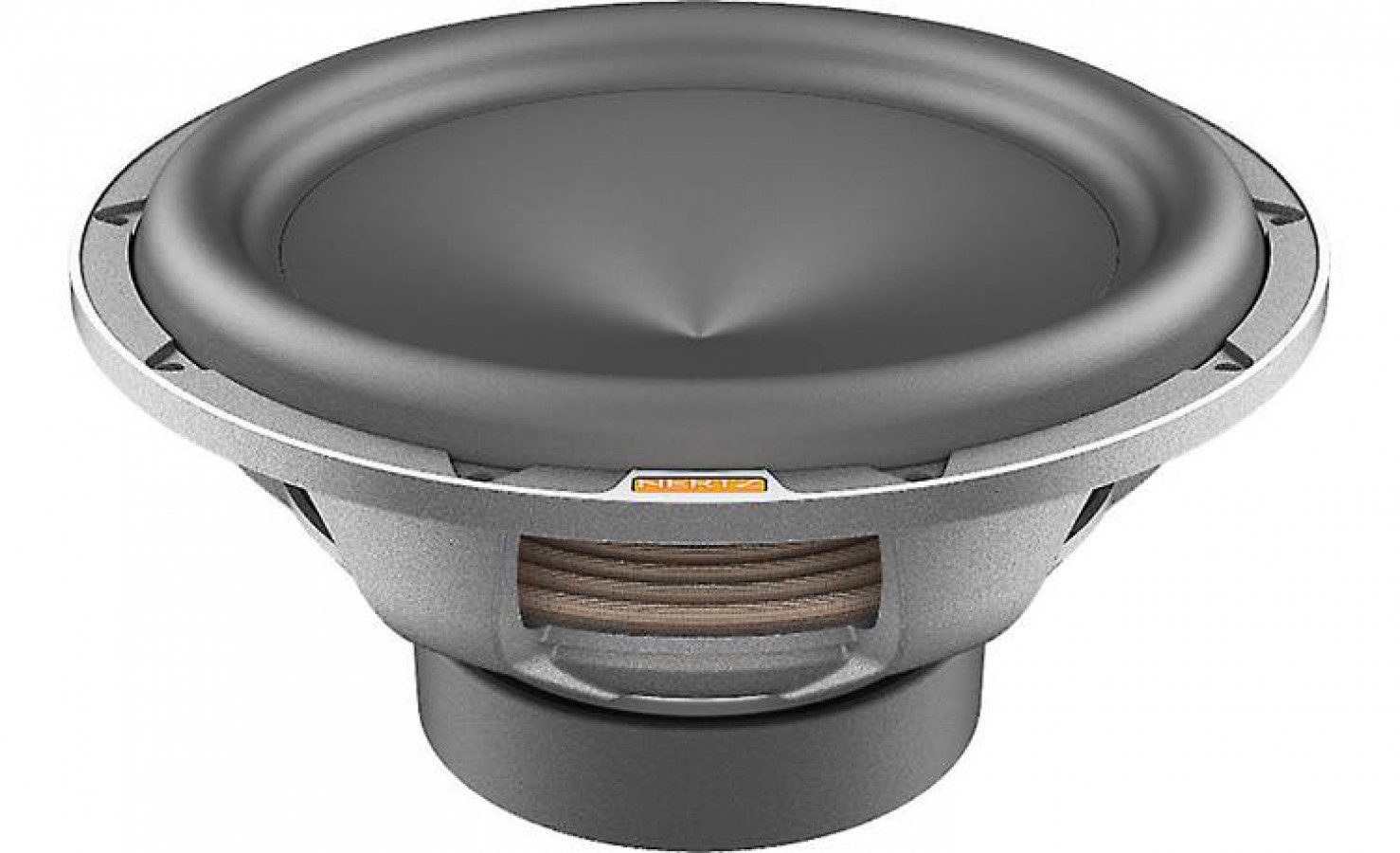

  • Rigid V-cone: Pressed paper pulp injected with mineral powders increases rigidity and helps the cone operate like a piston.
  • Boundary Free Surround: High-purity IIR-butyl rubber and Boundary Free Surround technology provide a greater emission surface for higher sound pressure.

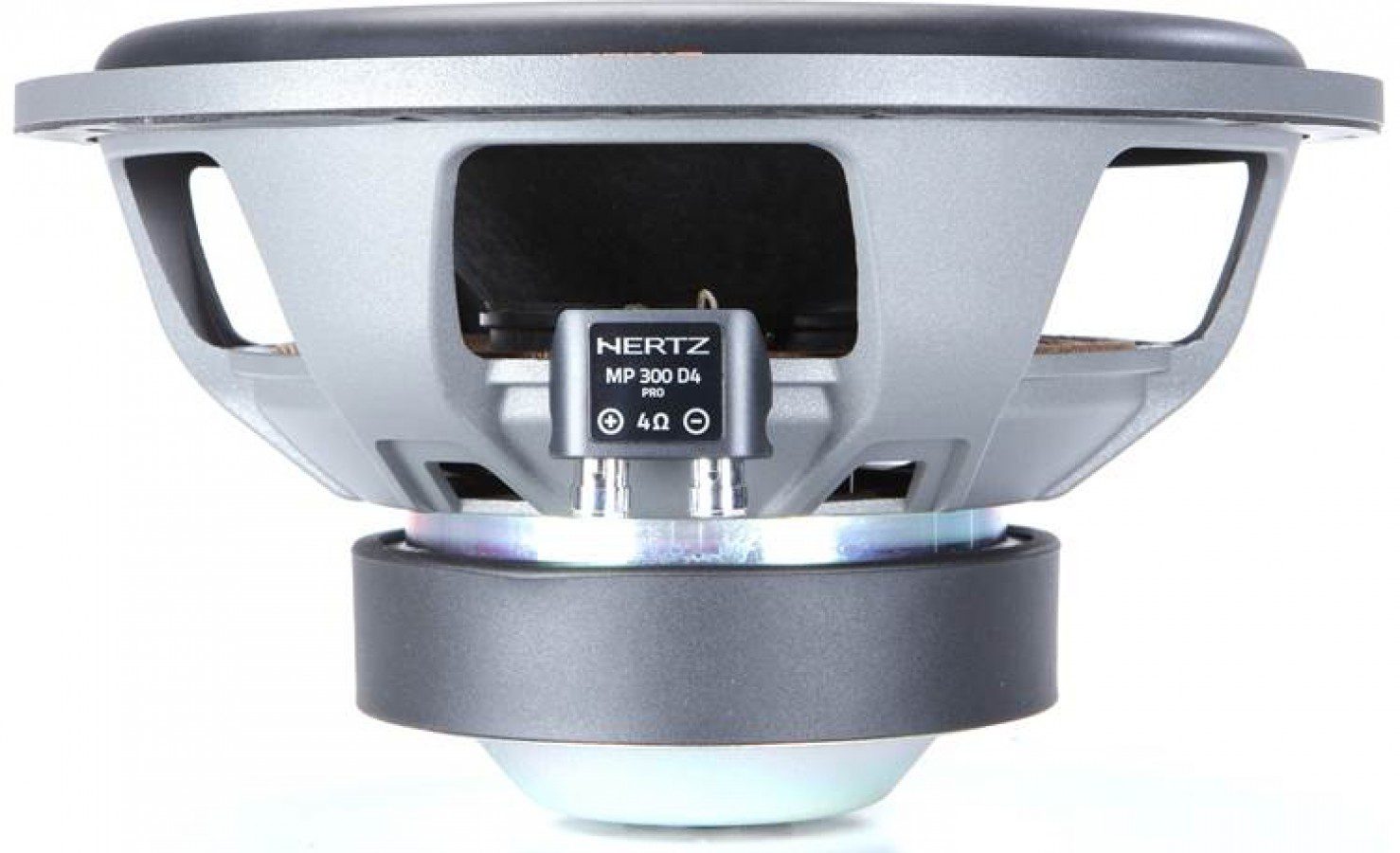

  • Anti-resonant frame: A compact 6-spoke aluminum-alloy basket supports mechanical damping while remaining transparent to the sound.
  • High-excursion voice coil: The 65 mm, 4-layer voice coil uses a TIL-P former to deliver high linear displacement.

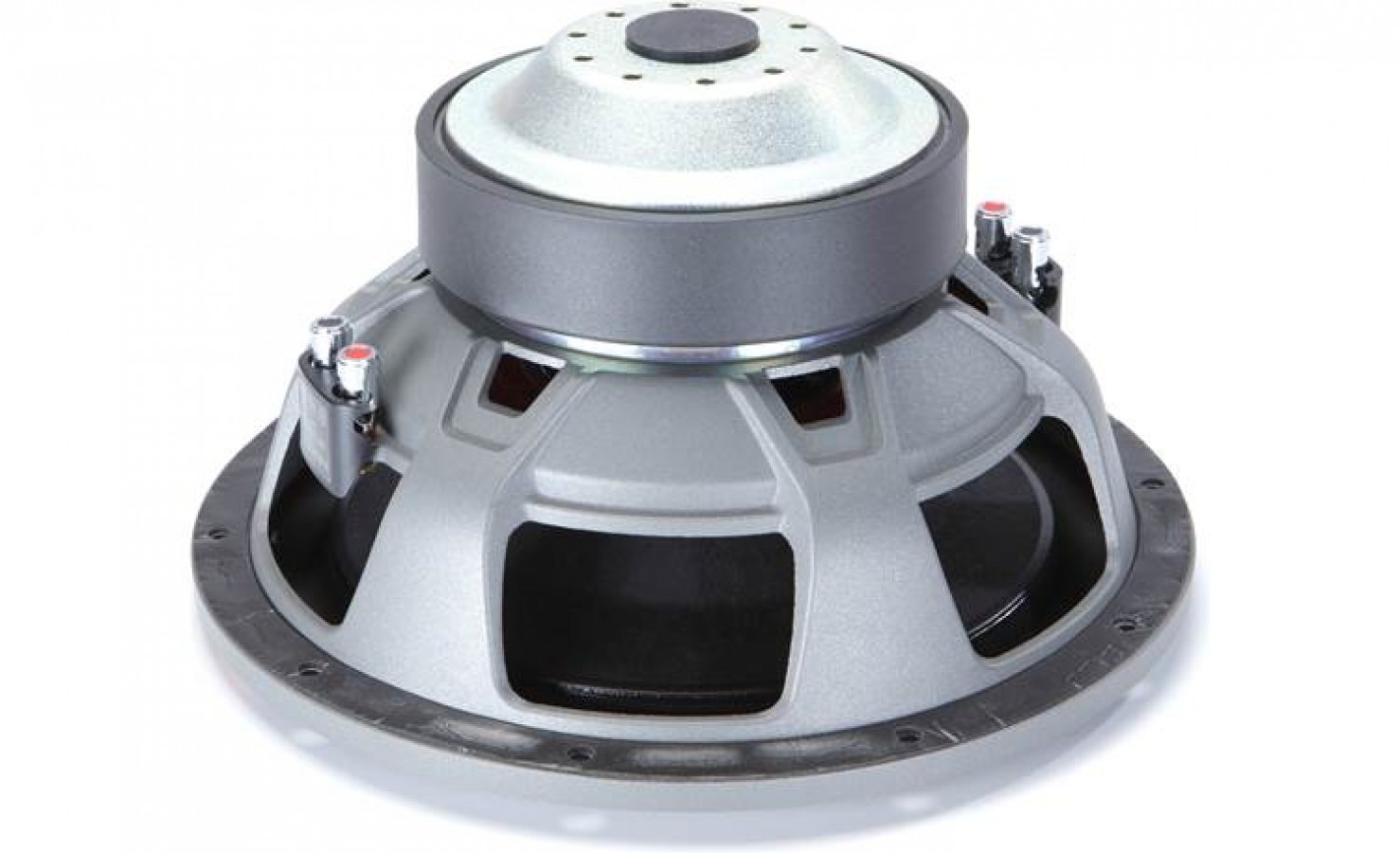

  • Advanced cooling: Voice-coil openings and 10 bottom-plate vents move air through the air gap to help maintain low operating temperatures.
  • Installation flexibility: A 164 mm mounting depth and center-hole-free bottom plate allow installation directly against the enclosure wall; the included damping rubber disk maintains airflow to the vents.

The MP 300 D4.3 brings depth and physical impact to music without demanding excessive mounting space. Its rigid cone profile and expanded emission surface turn low notes into a deep, pressurized rumble you can feel throughout the vehicle, while the high-displacement voice coil gives bass hits weight and authority.

Built around technology and materials derived from Hertz’s Mille Legend line, this subwoofer balances hard-hitting output with durable construction and practical installation. Solid push terminals with an anti-short-circuit cover accept cables up to 8 AWG for low-resistance connections.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 600 Watts RMS
Sub Max Power 1200 Watts Max
Sub Impedance 4 Ohm
Voice Coils Dual
Mounting Depth 164 mm
Construction
Sub Cone Material Pressed-Pulp Cone With Mineral Powders
Sub Magnet Material High Density Flux Ferrite
Sub Magnet Size 6.5 x 2.95 x 1.38 in (165 x 75 x 35 mm)
Sub Voice Coil Diameter 2.5 in (65.5 mm)
Sub Voice Coil Material CCAW
Performance & Thiele/Small
Sensitivity (dB/SPL) 86 dB
Resonant Frequency (Fs) 24 Hz
DC Resistance (Re) 1.9Ohm
Voice Coil Inductance (Le) 1.6 mH
Total Q (Qts) 0.42
Electrical Q (Qes) 0.45
Mechanical Q (Qms) 5.9
Equivalent Compliance Volume (Vas) 2.613 cu ft (74 L)
Cone Diameter (D) 260 mm
Moving Mass (Mms) 8.289 oz (235 g)
Mechanical Compliance (Cms) 0.19 mm/N
Motor Force Factor (BL) 12 T*m
Maximum Linear Excursion (Xmax) 0.67 in (17 mm)
Maximum Mechanical Excursion (Xmech) 1.06 in (27 mm)
Physical Specifications
Sub Displacement 0.127 cu.ft. (3.6l)
Grille/Trim Ring Included No

Additional information

Weight 18 lbs
Sub Impedance

Sub Power RMS

Sub Size

Sub Max Power

1200 Watts Max

Voice Coils

Dual

Sub Type

Standard

Series

Mille
