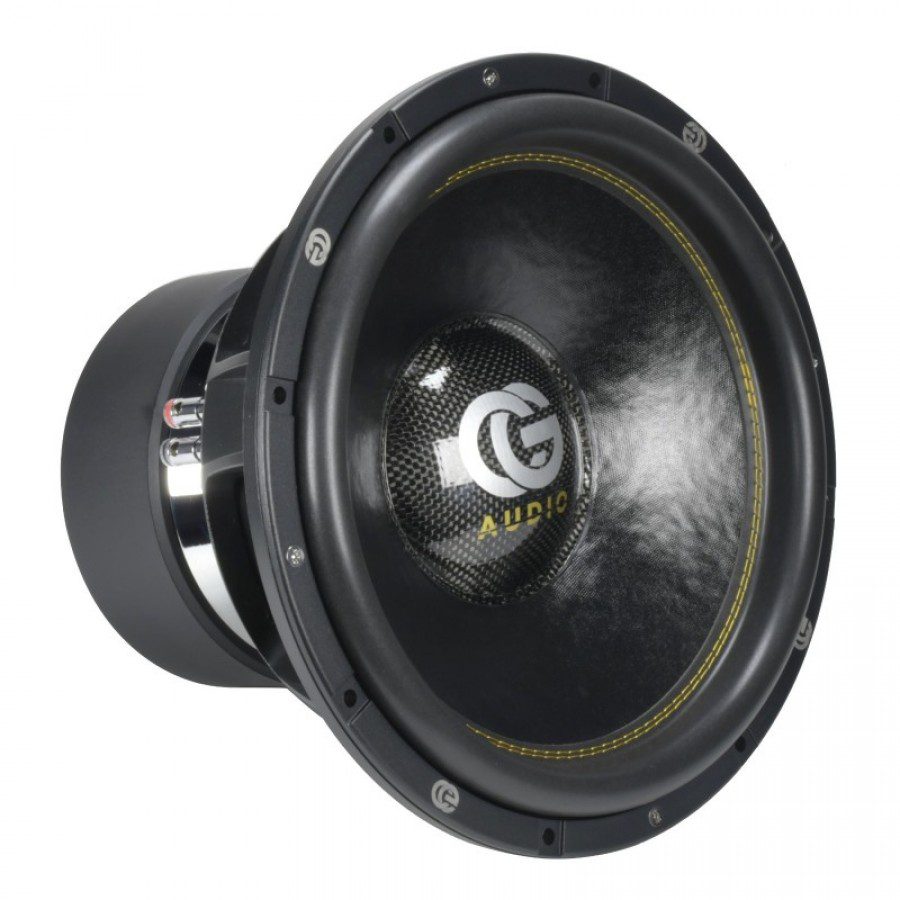

OG AUDIO OGX121500A 12 IN DUAL1500 WATTS 2 OHM – SILVER

OG AUDIO OGX121500A
The OGX121500A2 is an overall dimensions 314*270mm , dual 2-ohm, Kraft pulp fiber non-pressed cone. This subwoofer was engineered to sound great and handle ample amounts of power after a years of studying and practicing , which allows them to be very versatile in use. This driver utilizes a high temperature CCAR voice coil wire black aluminum and 4 layers, which in conjunction with its powerful, yet the magnet system type ferrite , allow it to perform with dominance .
OGX121500A
OG X 12" 1500 WATTS RMS 2Ω SILVER
OG X 12" 1500 WATTS RMS 2Ω SILVER
OGX121500A
OG X 12" 1500 WATTS RMS 2Ω SILVER
OG X 12" 1500 WATTS RMS 2Ω SILVER
OG X 12" 1500 WATTS RMS 2Ω SILVER

OG X 12" 1500 WATTS RMS 2Ω SILVER
Reference : OGX121500A
The OGX121500A2 is an overall dimensions 314*270mm , dual 2-ohm, Kraft pulp fiber non-pressed cone. This subwoofer was engineered to sound great and handle ample amounts of power after a years of studying and practicing , which allows them to be very versatile in use. This driver utilizes a high temperature CCAR voice coil wire black aluminum and 4 layers, which in conjunction with its powerful, yet the magnet system type ferrite , allow it to perform with dominance .

Share Tweet Pinterest
Security policy
(edit with the Customer Reassurance module)

Delivery policy
(edit with the Customer Reassurance module)

Return policy
(edit with the Customer Reassurance module)

Guarantee safe checkout
cms-banner1
Description Product Details Shipping
The OGX121500A2 is an overall dimensions 314*270mm , dual 2-ohm, Kraft pulp fiber non-pressed cone. This subwoofer was engineered to sound great and handle ample amounts of power after a years of studying and practicing , which allows them to be very versatile in use. This driver utilizes a high temperature CCAR voice coil wire black aluminum and 4 layers, which in conjunction with its powerful, yet the magnet system type ferrite , allow it to perform with dominance .
The OG series make for a great under seat subwoofer or for use in applications where mounting depth is limited. A competition grade pressed paper cone and high roll foam surround, allow the OGX121500 A 2Ω to perform reliably for hours on end. Let any kind of music come alive with the shallow mount, powerful OG AUDIO series.
General Data

OGX121500AD2

OGX121500AD4

Overall Dimensions

314*270mm

Nominal Power Handling

1500 W

Transient Power 10ms

3000 W

Sensitivity

84.5 dB

84.8 dB

Frequency Response

46-300Hz

45-300Hz

Cone Material

Kraft pulp fiber non-pressed cone

Net Weight

25.4 kg

Electrical Data

Nominal Impedance

Dual 2.0Ohm

Dual 4.0Ohm

DC Resistance

Dual 2.0Ohm

Dual 3.0Ohm

Voice Coil and Magnet Parameters

Voice Coil Diameter

76.5 mm

Voice Coil Height

58mm

HE Magnetic Gap Height

23mm

Max.Linear Excursion

17.5 mm

Voice Coil bobbin

Black Aluminum

Voice Coil Wire

CCAR

Number Of Layers

4 layers

Magnet System Type

Ferrite

BL Product

24.38 N.A

14.2 N.A

T-S Parameters

Suspension Compliance

Cms

0.03

0.3

Mechanical Q Factor

Qms

5.73

4.24

Electrical Q Factor

Qes

0.71

0.7

Total Q Factor

Qts

0.63

0.6

Moving Mass

Mms

359.9

335

Eq.Cas Air Load( liters)

VAS

12.8 Liter

14.5 Liter

Resonant Frequency

Fs

46Hz

45Hz

Effective Piston Area

SD

530.9 cm²

NOTE:TS Measurement Connection:

Series

Parallel
