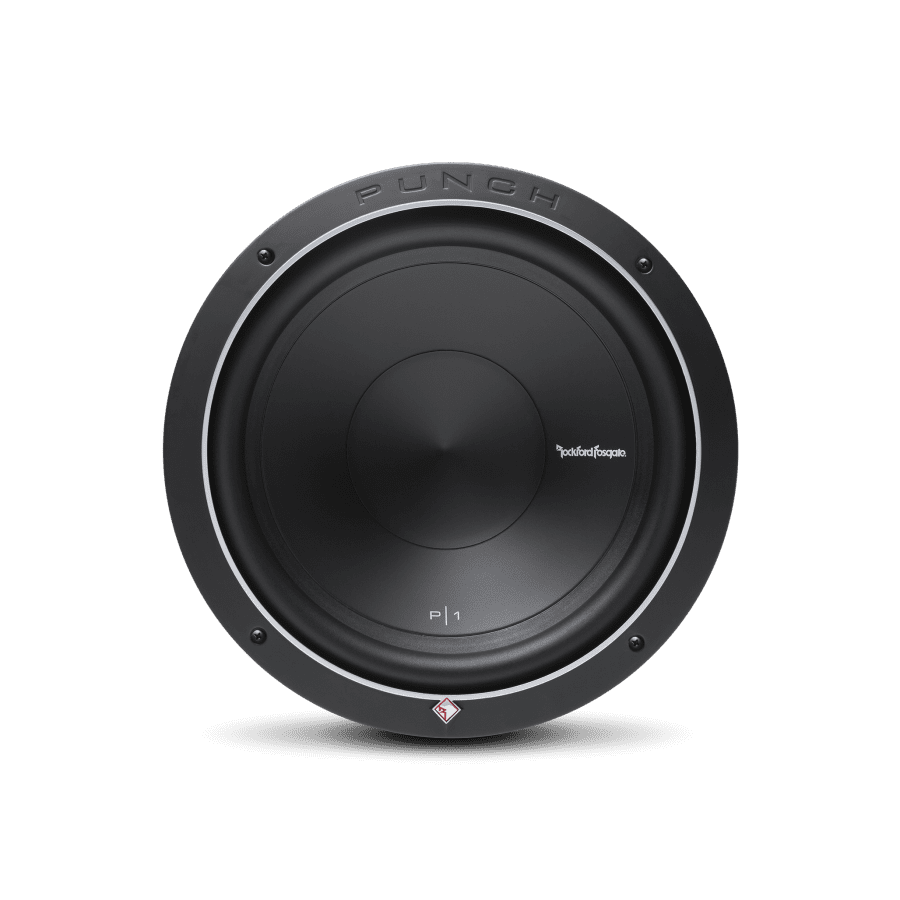

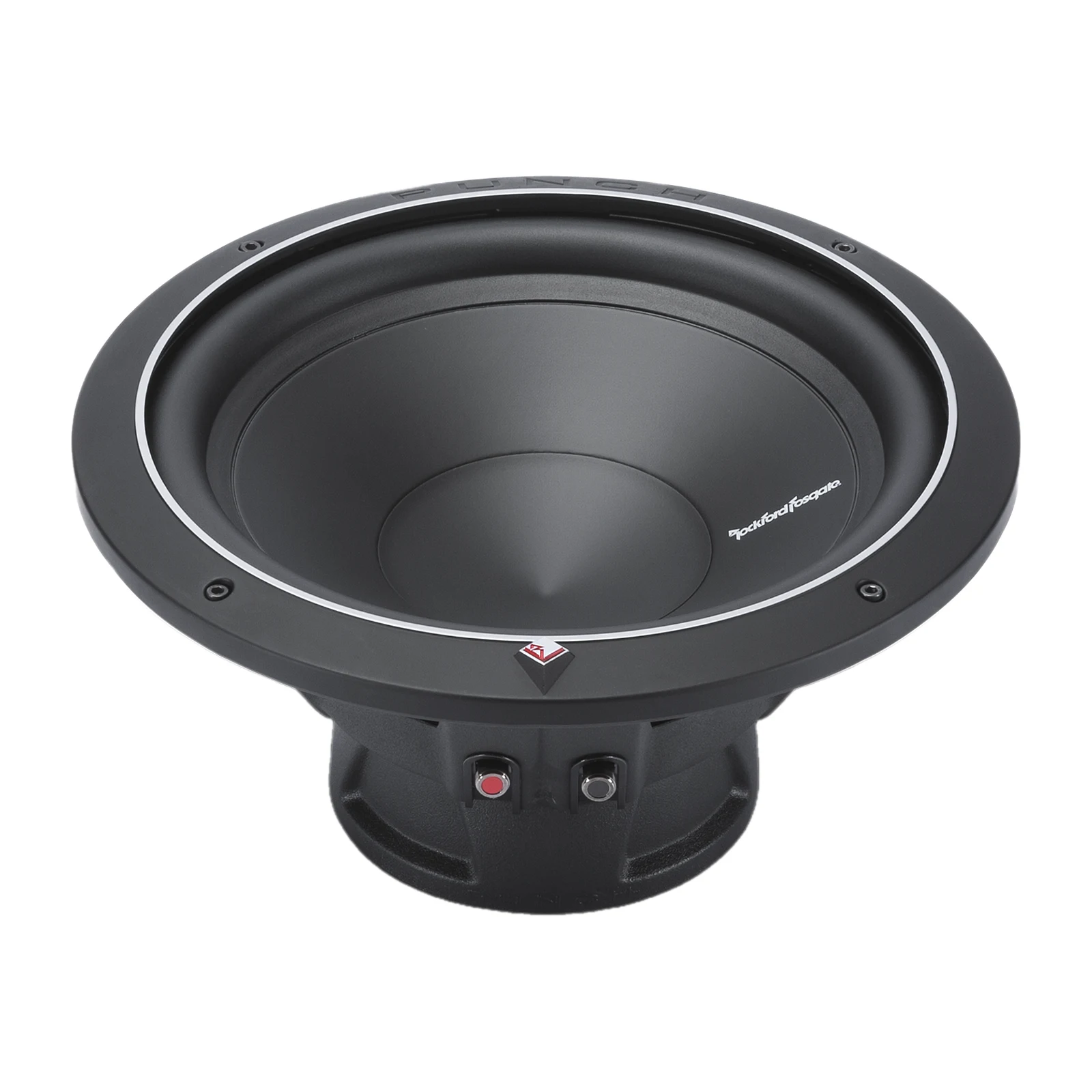

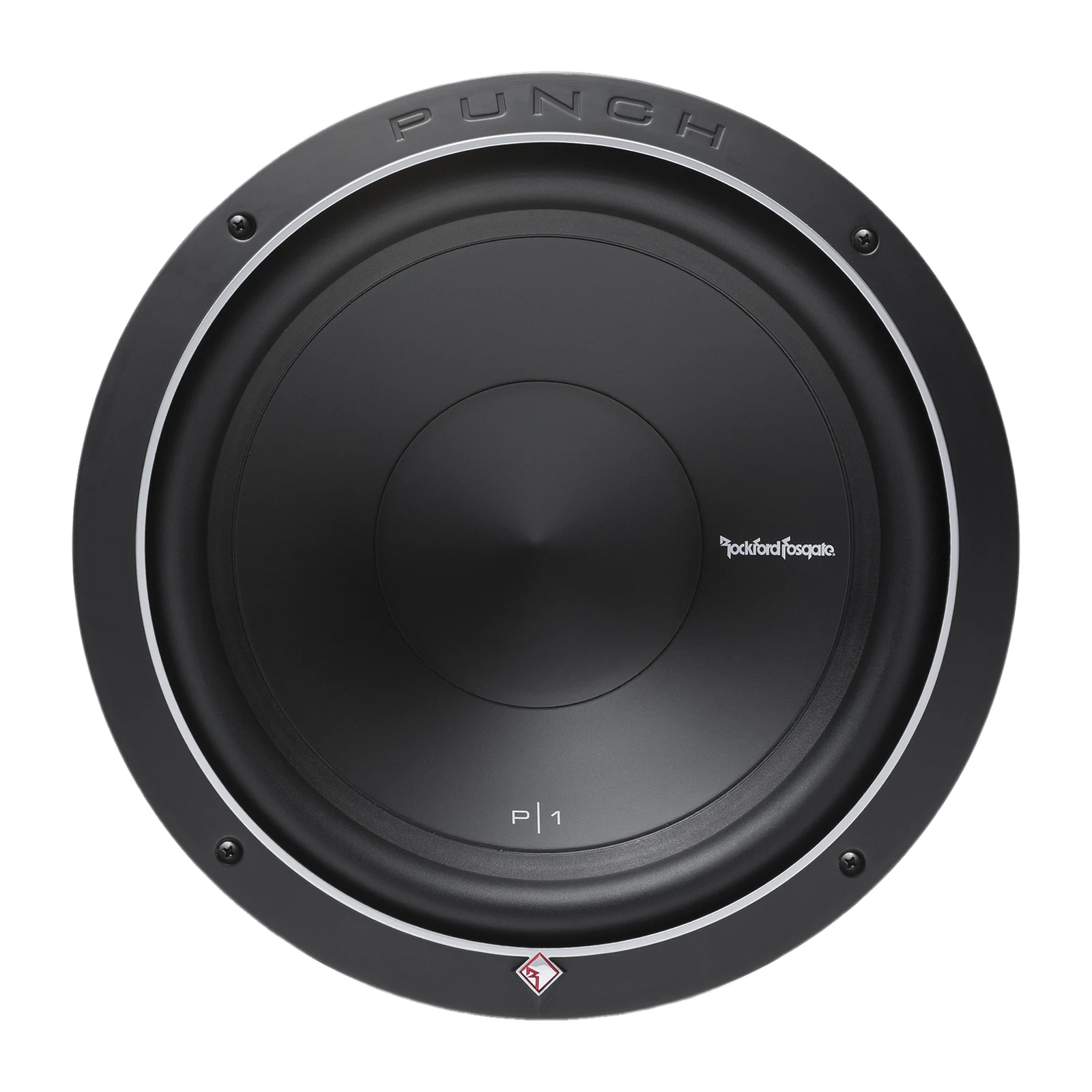

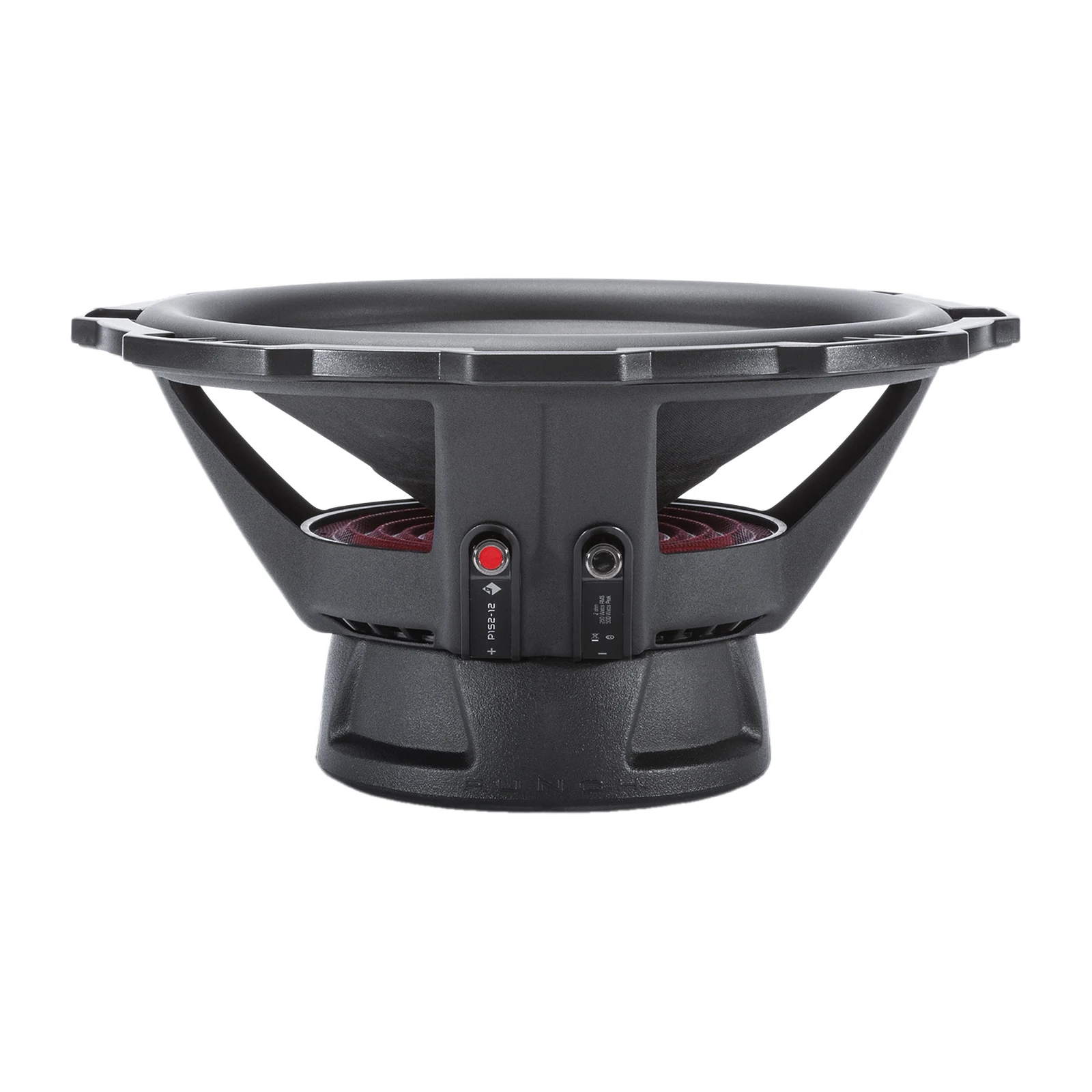

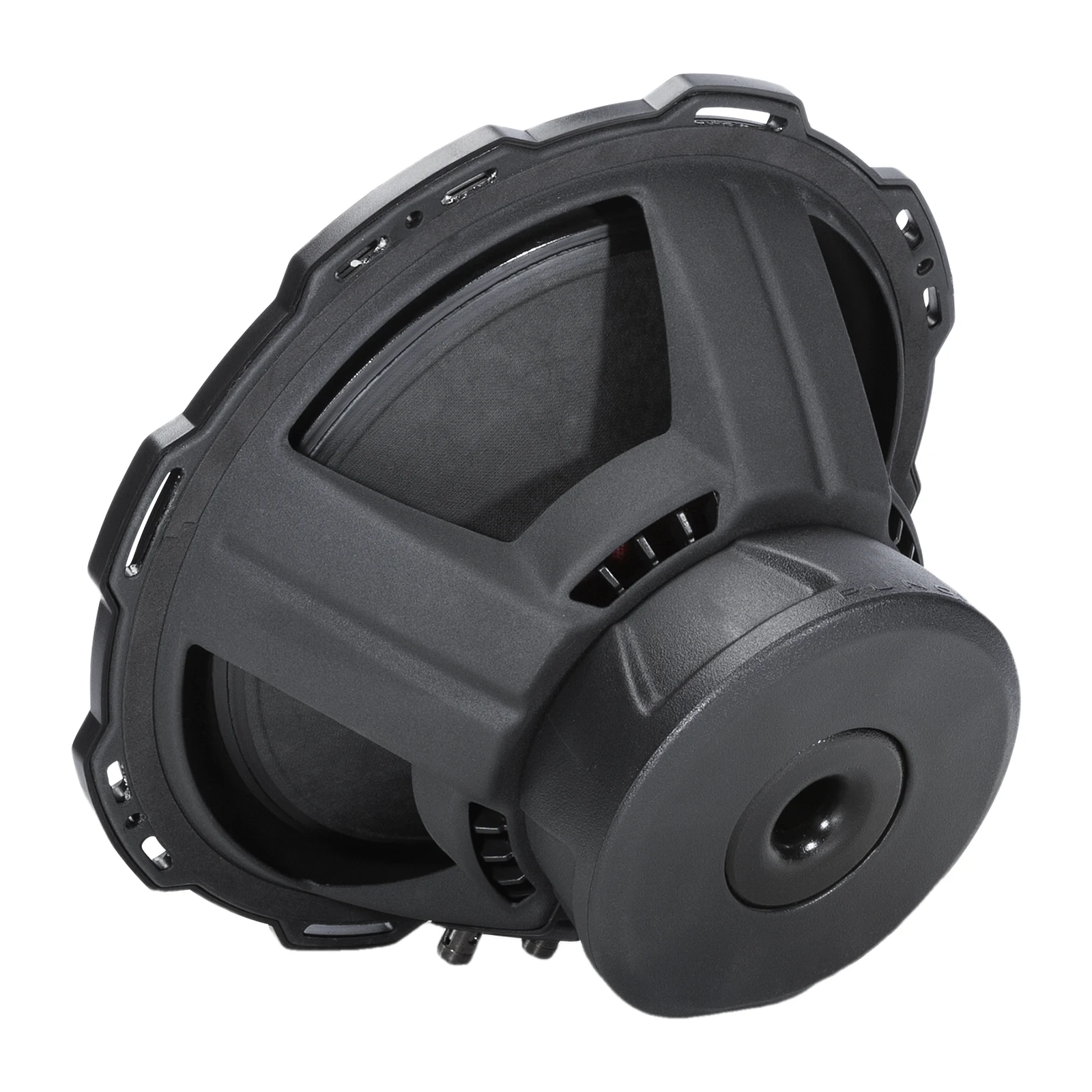

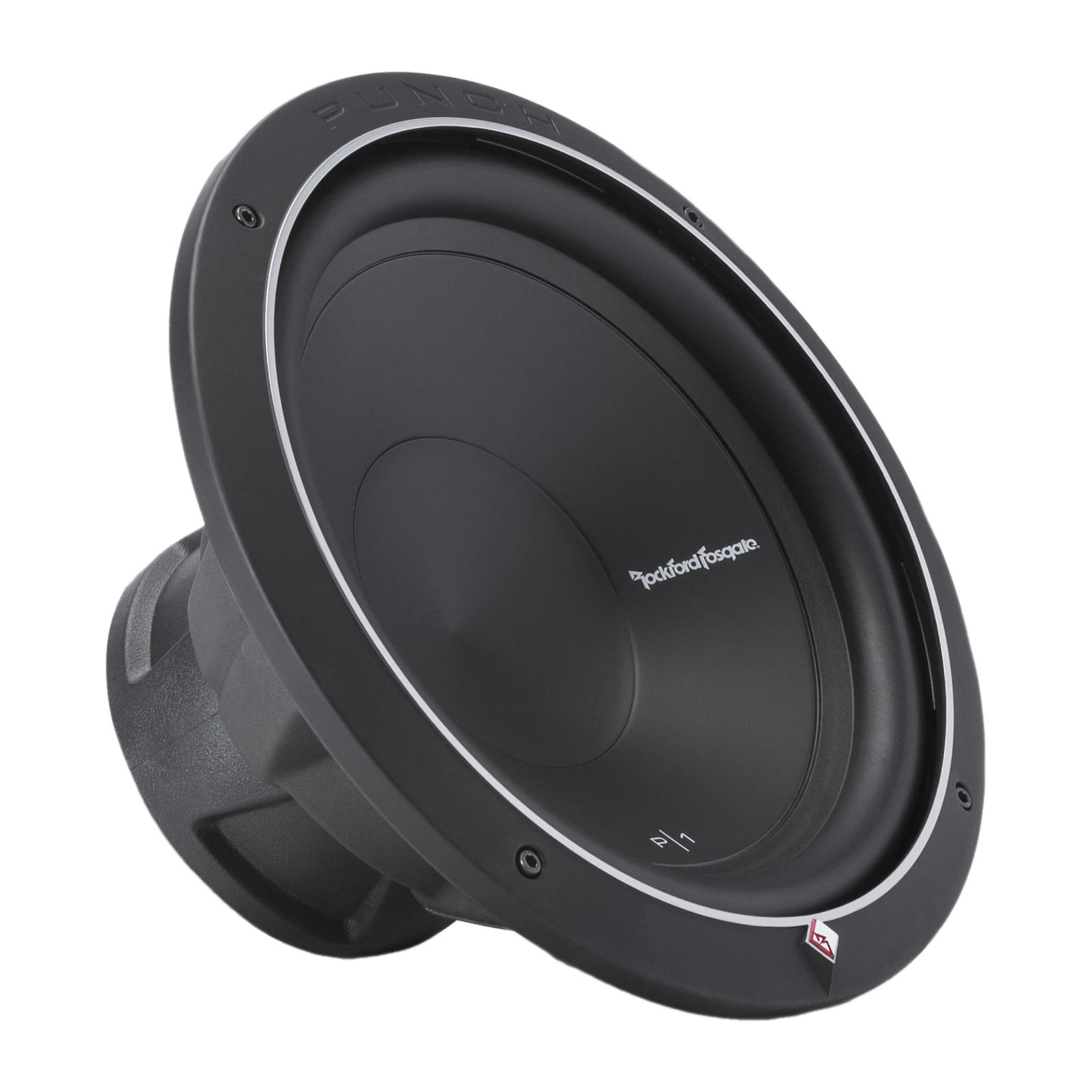

Rockford Fosgate Punch P1S2-12 12in 2 Ohm 250 Watts Subwoofer

Rockford Fosgate P1S2-12 12-inch Punch subwoofer with a single 2-ohm voice coil, 250 watts RMS power handling, a Kevlar fiber-reinforced paper cone, and sealed or vented enclosure flexibility.

$129.99

3 in stock

Description

The Sub At A Glance:

  • Power Handling: Handles 250 watts RMS and 500 watts maximum power.
  • Voice Coil Configuration: Single 2-ohm voice coil with a 2.0-inch (51.6 mm) diameter.
  • Reinforced Cone: Kevlar fiber-reinforced paper cone delivers bass impact you can feel.
  • VAST Technology: Increases usable cone surface area by up to 25%.
  • Durable Frame: StampCast basket with integrated spider venting provides a solid foundation.
  • Controlled Suspension: Linear spider features embedded 16-AWG tinsel leads.
  • High-Temperature Construction: Voice coil uses a spun-laced Nomex reinforcement collar.
  • Enclosure Flexibility: Designed to perform best in standard sealed and vented enclosures.

The Rockford Fosgate P1S2-12 brings the unmistakable weight of Punch bass into your vehicle. Its 12-inch cone moves the low notes with satisfying depth, giving bass lines a fuller rumble and adding physical impact to every beat. A soft-touch ABS trim ring is included and can accommodate an optional grille insert for a clean finishing touch.

Subwoofer Specifications
Sub Size 12in
Sub Type Standard
Sub Power RMS 250 Watts
Sub Max Power 500 Watts
Sub Impedance 2 Ohm
Voice Coils Single
Voice Coil Diameter 2.0in (51.6 mm)
Performance & Thiele/Small Parameters
Maximum Linear Excursion (Xmax) 9.0mm
Sound Pressure Level (SPL) @ 1W/1m 86dB
Sound Pressure Level (SPL) @ 2.8V/1m 89dB
Resonant Frequency (Fs) 25Hz
DC Resistance (Re) 1.8Ohm
Voice Coil Inductance (Le) 1.17mH
Total Q (Qts) 0.55
Electrical Q (Qes) 0.84
Mechanical Q (Qms) 3.39
Equivalent Compliance Volume (Vas) 88.3Liters
Effective Cone Area (Sd) 548cm²
Fitment & Dimensions
Woofer Displacement 0.081 cu. ft. (2.3 Liters)
Mounting Depth 6.0 in. (152.4 mm)
Cutout Diameter 11.22 in. (285 mm)
Magnet Weight (oz) 45 oz. (1.28 kg.)
Sealed Box Volume (Vb) 1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb) 1.79 cu. ft. (50.6 Liters)
Speaker Connector Dual 10 AWG compression
Shipping Weight 12.5 Lbs. (5.66 Kg)

Additional information

Weight 13 lbs
Sub Size

Sub Impedance

Sub Max Power

500 Watts Max

Sub Power RMS

Sub Type

Standard

Voice Coils

Single

Series

Punch
