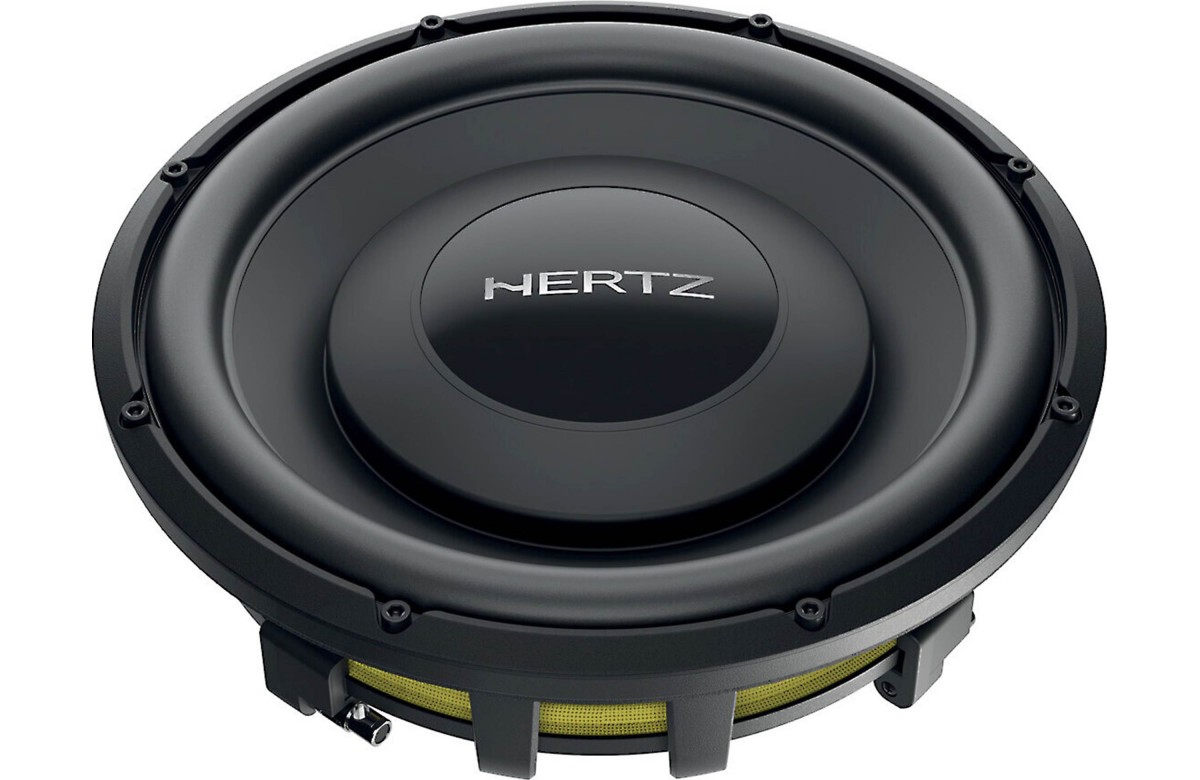

Hertz Mille MPS 300 S4 12in 4 Ohm 500 Watts RMS Subwoofer

The Hertz MPS300S4 is a 12-inch shallow-mount subwoofer built for powerful bass in tight spaces, with 500 Watts RMS power handling and ultra-compact sealed enclosure compatibility.

$599.99

4 in stock

Description

The Sub At A Glance:

  • Ultra-shallow design: An 89 mm mounting depth makes the MPS300S4 ideal for installations where enclosure height is limited.
  • Compact enclosure flexibility: Optimized for sealed enclosures from 20 to 24 liters, or 0.7 to 0.8 cubic feet.
  • Strong power handling: Handles 500 Watts RMS and 1000 Watts Max.
  • Six-layer voice coil: The 38 mm copper voice coil provides high thermal capacity with a 4 Ohm impedance.

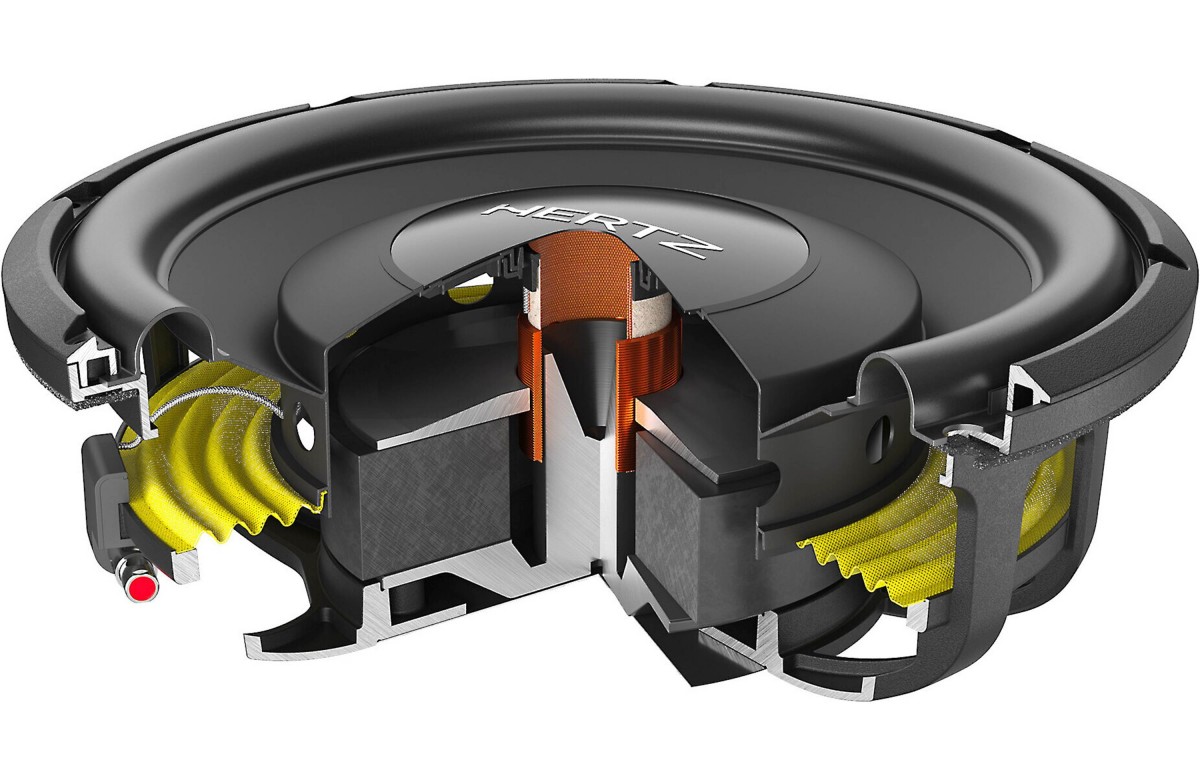

  • Extended excursion: A dedicated spider and coil support structure delivers 20 percent more cone excursion than traditional designs.
  • Controlled airflow: Air Intercooling Revolution technology helps prevent limitations caused by air compression.

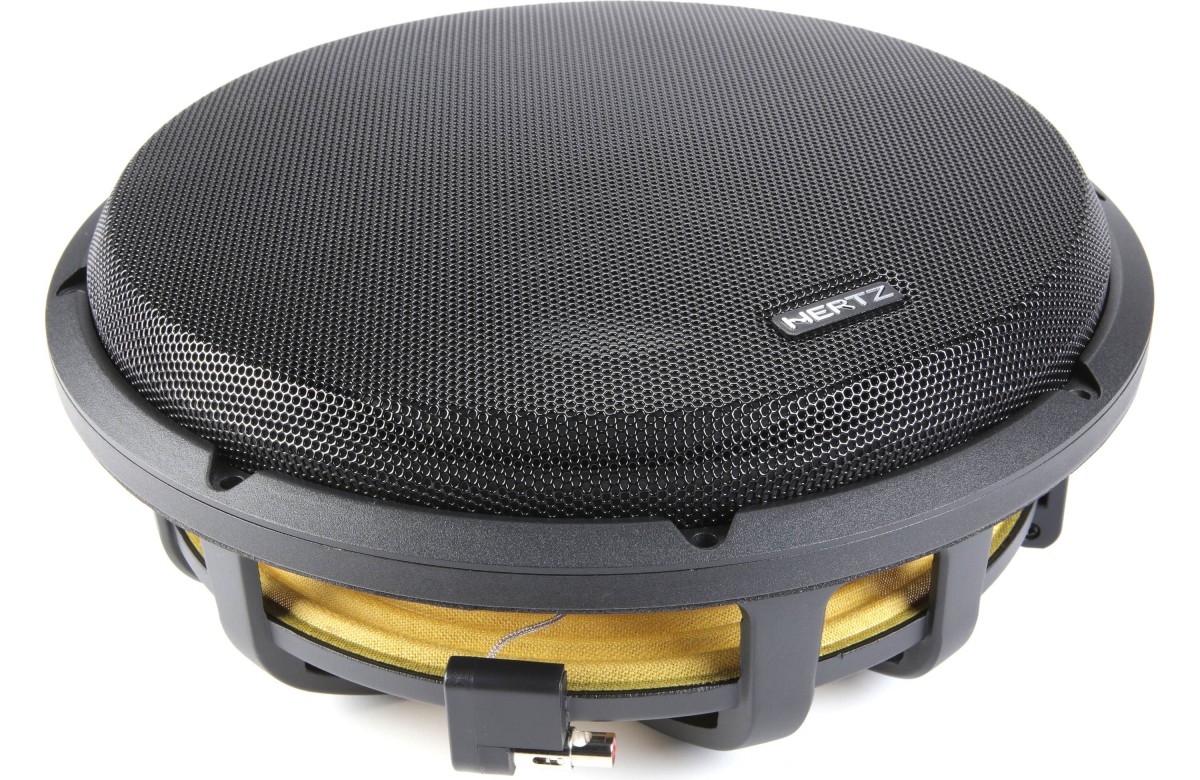

  • Durable construction: A die-cast aluminum frame, solid 8 AWG spring-loaded terminals, and included screw-less mesh grille support a tough, installation-ready design.

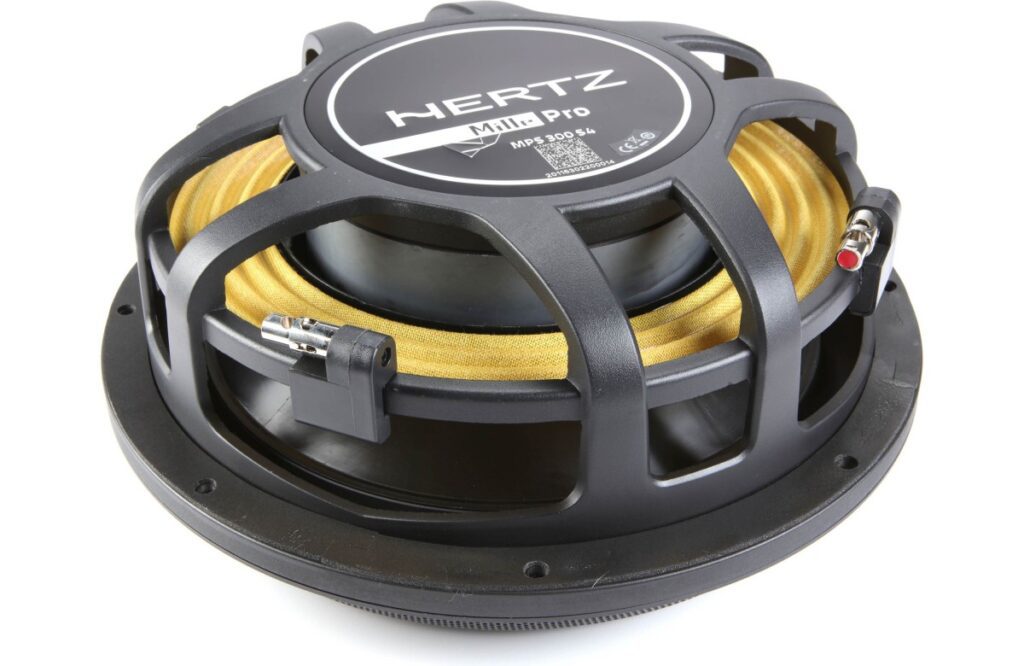

  • Space-saving rear profile: The non-vented rear design helps reduce the enclosure depth required for installation.

The Hertz MPS300S4 brings deep rumble and solid low-frequency impact to vehicles where a conventional subwoofer box simply will not fit. Its shallow profile and high excursion capability let the bass reach into the cabin with convincing weight, making kick drums feel more immediate and low notes more physical without demanding a large enclosure.

Subwoofer Specifications
Sub Size 12in
Sub Type Shallow
Sub Power RMS 500 Watts RMS
Sub Max Power 1000 Watts Max
Sub Impedance 4 Ohm
Voice Coils Single
Mounting Depth 89 mm
Construction
Sub Cone Material Polypropylene
Sub Surround Material Nitrile rubber (NBR)
Sub Basket Material Steel
Sub Magnet Material High Density Flux Ferrite
Sub Magnet Size 6.14 x 2.36 x 1.42 in (156 x 60 x 36 mm)
Sub Voice Coil Diameter 1.5 in (38 mm)
Sub Voice Coil Material Copper
Performance & Thiele/Small
Frequency Response (Hz) 25 – 400 Hz
Sensitivity (dB/SPL) 85 dB
Resonant Frequency (Fs) 23 Hz
DC Resistance (Re) 3.4Ohm
Voice Coil Inductance (Le) 3.75 mH
Total Q (Qts) 0.42
Electrical Q (Qes) 0.45
Mechanical Q (Qms) 6.3
Equivalent Compliance Volume (Vas) 2.194 cu ft (62.13 L)
Cone Diameter (D) 262.59 mm
Moving Mass (Mms) 11.288 oz (320 g)
Mechanical Compliance (Cms) 0.15 mm/N
Motor Force Factor (BL) 18.7 T*m
Maximum Linear Excursion (Xmax) 0.66 in (16.8 mm)
Maximum Mechanical Excursion (Xmech) 0.79 in (20 mm)

Additional information

Weight 20 lbs
Dimensions 5 × 12 × 5 in
Sub Impedance

Sub Power RMS

Sub Size

Sub Max Power

1000 Watts Max

Voice Coils

Single

Sub Type

Shallow

Series

Mille
