Description

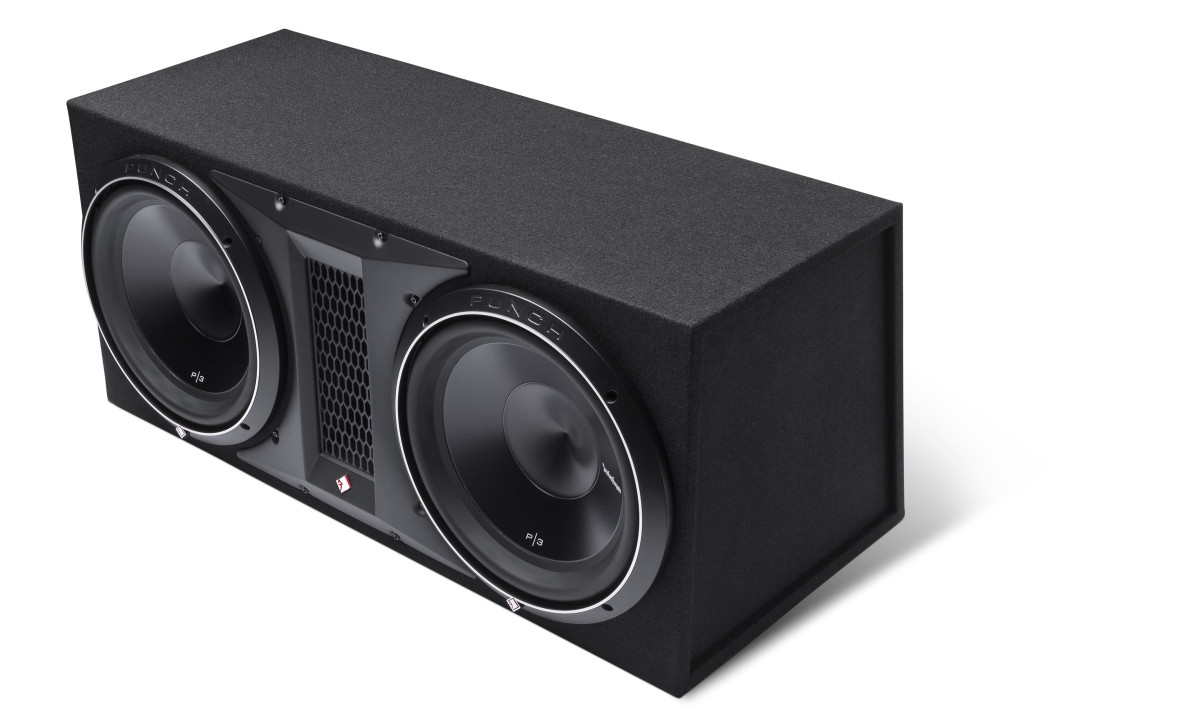

The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We’re not talking junk in the trunk, we’re talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8″ MDF and tuned by our computer aided design software. P3 Loaded Enclosures feature similar tonal performance as P2 & P1 models, but with higher power handling capacity.
Proprietary high-flow, low-noise port
Constructed with 5/8″ MDF
High current binding posts
1 Year Warranty
CEA-2031 CompliantCEA-2031 Guidelines

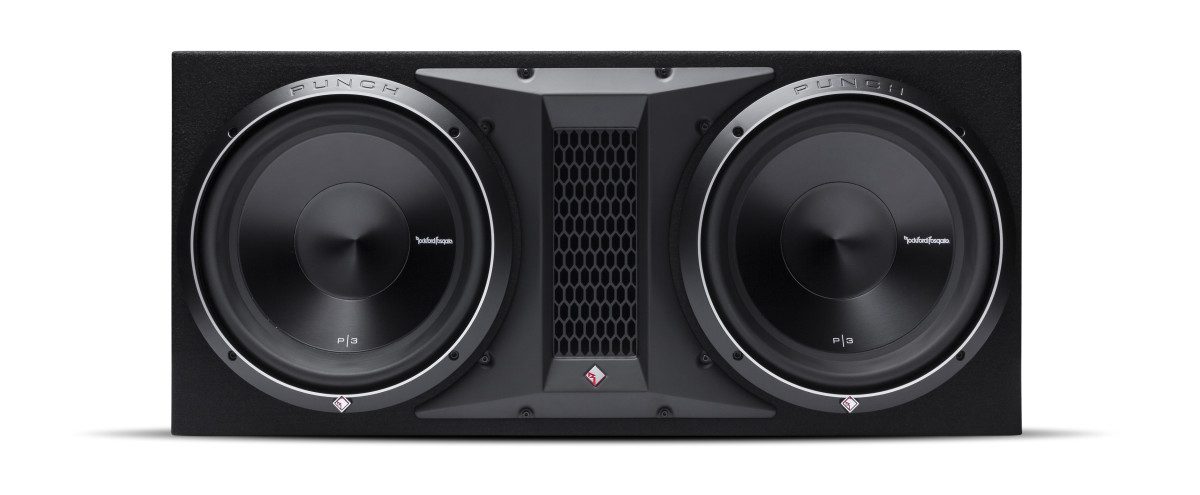

Woofer Quantity2
Woofer Size12″
Woofer SeriesPunch P3 (P3D4-12)
Power Handling (Watts RMS)1200 Watts RMS
2400 Watts Max
Nominal Impedance (ea)1-Ohm
Internally wired to create a 1-Ohm amplifier load
Enclosure TypeVented
Enclosure Material5/8″ MDF (Medium Density Fiberboard)

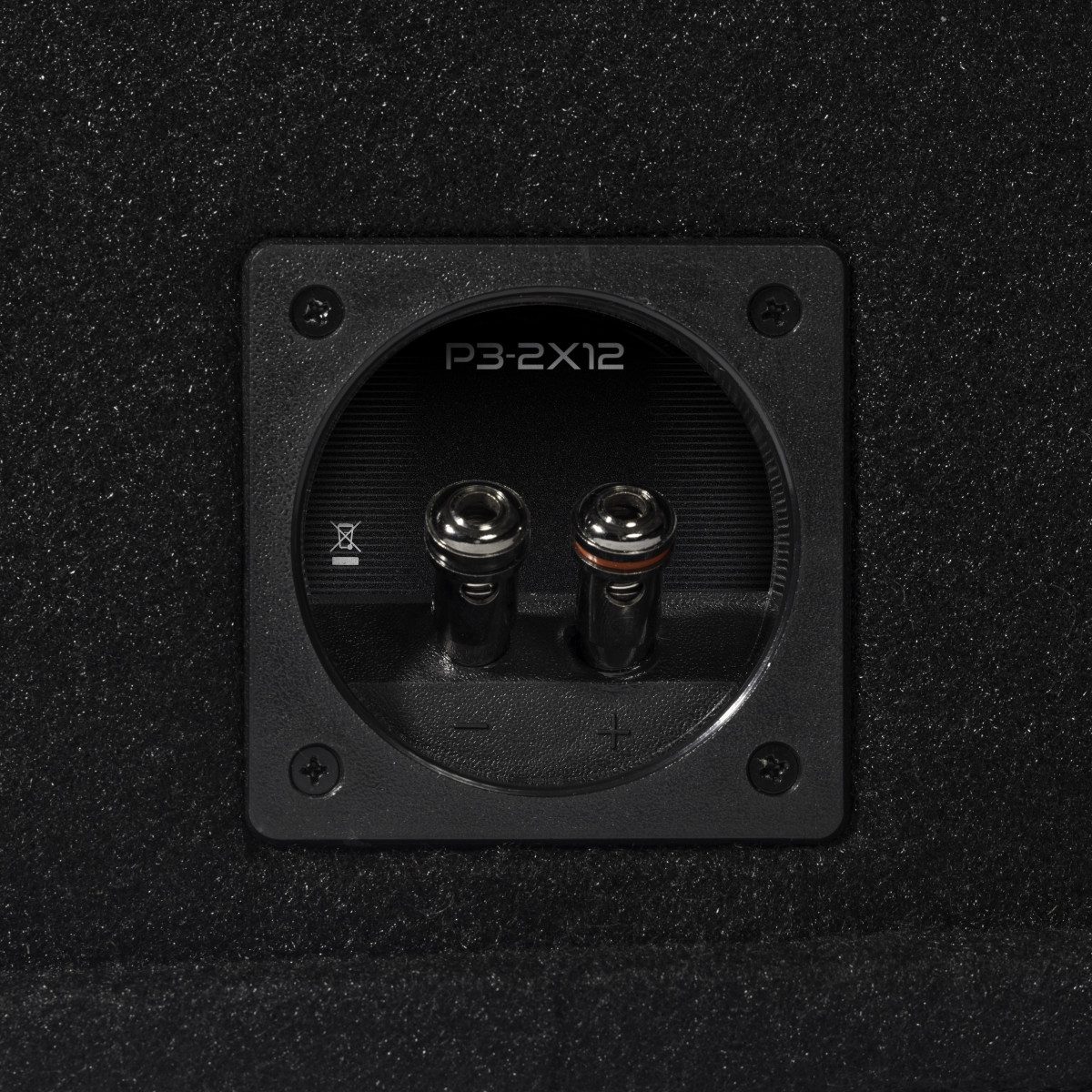

Speaker ConnectorUp to 10 AWG compression terminals
Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)15.125″ x 33.875″ x 15.75″
(38.4cm x 86cm x 40cm)
Shipping Weight89.65 Lbs. (40.66 kg)
